Sonolor; Paris, La: Totem [Radio] ID = 2349949 1000x460
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1971 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Super-Heterodyne (Super in general) |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Dry Batteries |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch |
| Power out | |
| from Radiomuseum.org | Model: Totem - Sonolor; Paris, La Courneuve |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 225 x 140 x 60 mm / 8.9 x 5.5 x 2.4 inch |
| Notes | 4 gammes d'ondes dont OC2 de 13 à 40 m et OC1 de 40 a 120 m. Prise pour antenne voiture. Coffret gainé anti-choc. |

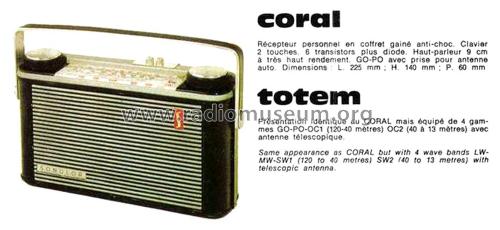

| Mentioned in | -- Original prospect or advert (Catalogue ca. 1971) |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
