Vedette coffret à oreilles

Vedette ; Sonolor; Paris, La (ID = 2510086) Radio Vedette ; Sonolor; Paris, La (ID = 2510087) Radio
Vedette ; Sonolor; Paris, La (ID = 239953) Radio Vedette ; Sonolor; Paris, La (ID = 239954) Radio
Vedette ; Sonolor; Paris, La (ID = 239955) Radio Vedette ; Sonolor; Paris, La (ID = 239956) Radio
Use red slider bar for more.

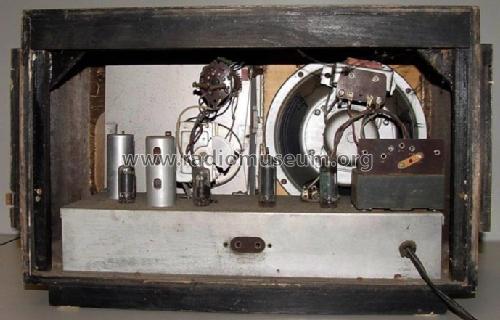

Vedette ; Sonolor; Paris, La (ID = 2510086) Radio
Sonolor; Paris, La: Vedette [Radio] ID = 2510086 1400x862
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vedette coffret à oreilles, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AT6 6AQ5 EM34 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 145, 220, 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14.5 cm = 5.7 inch
Power out
from Radiomuseum.org Model: Vedette [coffret à oreilles] - Sonolor; Paris, La Courneuve
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 295 x 225 mm / 19.9 x 11.6 x 8.9 inch
Notes Wellenschalter mit Stellung PU, aber kein Anschluss vorhanden

Model page created by Georg Richter. See "Data change" for further contributors.



All listed radios etc. from Sonolor; Paris, La Courneuve
Here you find 90 models, 79 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
