• Country
• France

• Manufacturer / Brand
• RTA (R.T.A.); Le Pré-Saint-Gervais

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63099

• Number of Tubes
• 5

• Valves / Tubes
• 6E8G 6M7 6H8MG 6V6G 5Y3GB

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

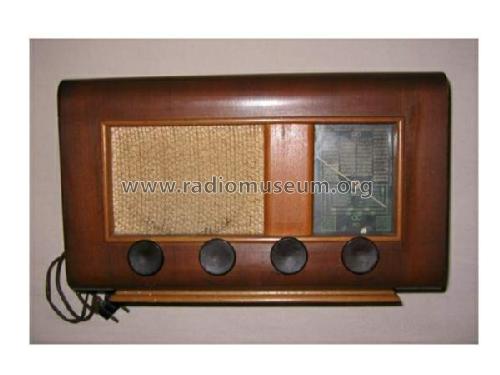

• Model: AF6 - RTA R.T.A.; Le Pré-Saint-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 230 x 180 mm / 14.6 x 9.1 x 7.1 inch

• External source of data
• Serge Laffont/Martin Renoth

• Other Models

• Here you find 36 models, 21 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
