• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1945 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17747

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 or 6E8MG ECF1 EBL1 1883

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• from Radiomuseum.org

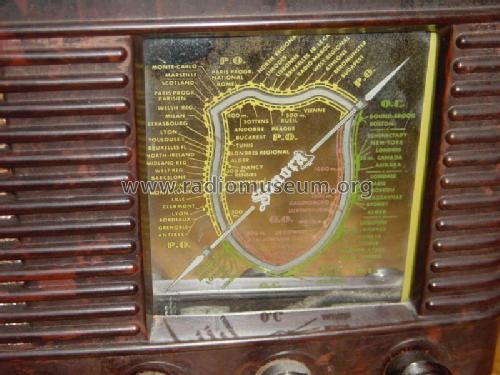

• Model: Excellence 200 - Sonora-Radio; Paris, Puteaux

• Dimensions (WHD)
• 350 x 200 x 210 mm / 13.8 x 7.9 x 8.3 inch

• Notes
• Thali??

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• External source of data
• E. Erb 3-907007-36-0
