- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonora Phonograph Co., Inc.; New York, N.Y.
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 252679

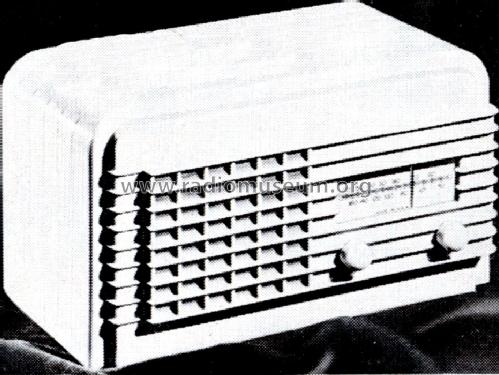

Scanned from the Sonora Folder for 1939.
Scanned from the Sonora Folder for 1939.
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Power type and voltage
- 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: B-22 - Sonora Phonograph Co., Inc.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.75 x 7.75 x 7.5 inch / 298 x 197 x 191 mm
- Notes
-
Tunes 1720 to 535 kc. Available in soft Ivory, mottled Walnut or Ivory face with Walnut body finish.
- Literature/Schematics (3)
- -- Original prospect or advert (The Sonora Folder for 1939.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
