664; Sonora Radio & Telev (ID = 2450345) Television

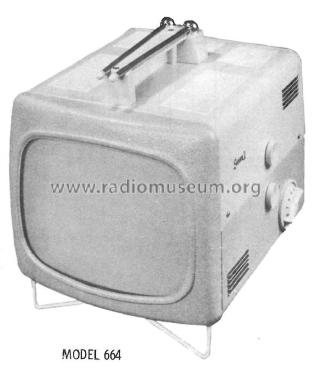

Sonora Radio & Telev: 664 [Television] ID = 2450345 936x1113
Select picture or schematic to display from thumbnails on the right and click for download.
For model 664, Sonora Radio & Telev. Corp.; Chicago (IL):
Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Sonora Radio & Telev. Corp.; Chicago (IL)
alternative name

Sonora Electric Phono
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: 4BC5 6CL8A 8AW8A 4DT6 6AN8 6U8A 8AW8A 8CM7 17DQ6 1X2B 17AX4GT 10ADP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 664 - Sonora Radio & Telev. Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Sonora model 664 is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis VHF tuner R-2675 and picture tube 10ADP4.



Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 374 Folder 12 dated 10-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
