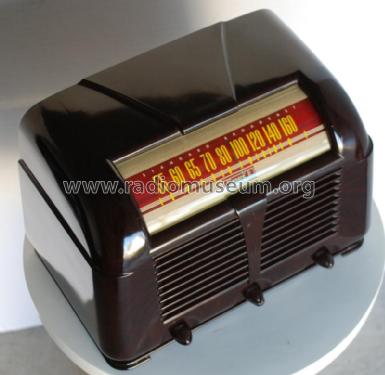

Sonora Radio & Telev: RQU-222 [Radio] ID = 1966105 800x779
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQU-222, Sonora Radio & Telev. Corp.; Chicago (IL):
Not the original knobs

Country:  United States of America (USA)
Manufacturer / Brand:  Sonora Radio & Telev. Corp.; Chicago (IL)
alternative name

Sonora Electric Phono
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: RQU-222 - Sonora Radio & Telev. Corp.;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Notes

Permeability Tuner.

Brown bakelite or ivory finish.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 8 folder 468-23 date 11-46)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 148.)
Literature/Schematics (3) Machine Age to Jet Age II (page 279.)


All listed radios etc. from Sonora Radio & Telev. Corp.; Chicago (IL)
