• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276741

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 35 24 27 35 27 35 27 24 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 135 kHz; Anode bend detection

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Changer (Record changer); Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio-Phono Combiné RP5 [avec changeur] - Sonora-Radio; Paris, Puteaux

• Shape
• Console with any shape - in general

• Notes

• Anti-fading. Indication visuel d'accord par milliampèremètre. Phonographe Sonora à changeur automatique de disques (10 disques 25 ou 30 cm).

  Ebenisterie noyer.

  Voir aussi modèle RP5 sans changeur. Châssis récepteur du modèle F5.

• Price in first year of sale
• 6,500.00 FRF

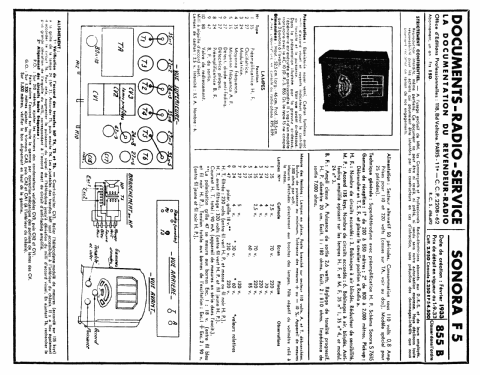

• Circuit diagram reference
• La Documentation du Revendeur - Radio

• Mentioned in
• L'Illustration (Nov. 1933)

• Literature/Schematics (1)
• L'Antenne No. 558, 3.12.1933, p.816
