Super-Sonorette toutes ondes

Super-Sonorette ; Sonora-Radio; Paris, (ID = 684638) Radio Super-Sonorette ; Sonora-Radio; Paris, (ID = 684639) Radio
Super-Sonorette ; Sonora-Radio; Paris, (ID = 684641) Radio Super-Sonorette ; Sonora-Radio; Paris, (ID = 684642) Radio
Super-Sonorette ; Sonora-Radio; Paris, (ID = 2074482) Radio Super-Sonorette ; Sonora-Radio; Paris, (ID = 954679) Radio
Super-Sonorette ; Sonora-Radio; Paris, (ID = 954680) Radio Super-Sonorette ; Sonora-Radio; Paris, (ID = 954681) Radio
Super-Sonorette ; Sonora-Radio; Paris, (ID = 954682) Radio Super-Sonorette ; Sonora-Radio; Paris, (ID = 954684) Radio
Use red slider bar for more.

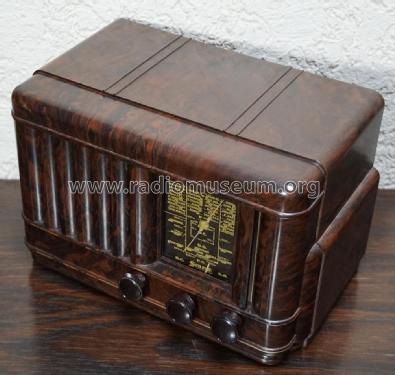

Super-Sonorette ; Sonora-Radio; Paris, (ID = 684638) Radio
Sonora-Radio; Paris,: Super-Sonorette [Radio] ID = 684638 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Sonorette toutes ondes, Sonora-Radio; Paris, Puteaux

Country:  France
Manufacturer / Brand:  Sonora-Radio; Paris, Puteaux
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6E8 6K7 6Q7 25L6 25Z6
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super-Sonorette [toutes ondes] - Sonora-Radio; Paris, Puteaux
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 290 x 190 x 190 mm / 11.4 x 7.5 x 7.5 inch
Notes

Modèle similaire au Sonorette 40 tous courants, mais avec 3 gammes d'ondes : OC de 20 à 50 m, PO de 200 à 500 m, et GO de 1200 à 1900 m.

Price in first year of sale 1'095.00 FRF
Mentioned in -- Original prospect or advert (Le Petit Parisien, 25.04.1940)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
