2 R-28

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1968

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
107887

Schematics

2 R-28; Sony Corporation; (ID = 987453) Radio — Sony Corporation; 2 R-28 (3)

2 R-28; Sony Corporation; (ID = 987454) Radio — Sony Corporation; 2 R-28 (3)

2 R-28; Sony Corporation; (ID = 987455) Radio — Sony Corporation; 2 R-28 (3)

2 R-28; Sony Corporation; (ID = 2829030) Radio — Sony Corporation; 2 R-28 (3)

2 R-28; Sony Corporation; (ID = 2270037) Radio — Sony Corporation; 2 R-28 (1)

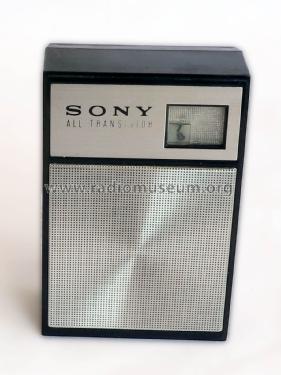

2 R-28; Sony Corporation; (ID = 2270038) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2270036) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2270040) Radio — Sony Corporation; 2 R-28 (1)
With leather case

2 R-28; Sony Corporation; (ID = 2270039) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 423803) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 423806) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 262998) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 423805) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 588505) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 700041) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 700044) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1451612) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1451646) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1451648) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1451649) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1514284) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1514879) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1514880) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1514881) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1515125) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1515126) Radio — Sony Corporation; 2 R-28 (2)

2 R-28; Sony Corporation; (ID = 1754299) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1754300) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1754302) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 1905913) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2010404) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2010405) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2010406) Radio — Sony Corporation; 2 R-28 (1)

2 R-28; Sony Corporation; (ID = 2010407) Radio — Sony Corporation; 2 R-28 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
2SA201 2SA198 2SA198 2SB270 2SB187 2SB187 1S426

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / AA: 2 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.2 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 2 R-28 - Sony Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
61 x 94 x 31 mm / 2.4 x 3.7 x 1.2 inch

Notes
6 Transistor and 1 diode superheterodyne ... Frequency Range MW 530 - 1605 kc (5660 187 m)

Net weight (2.2 lb = 1 kg)
0.2 kg / 0 lb 7 oz (0.441 lb)

Source of data
Handbuch VDRG 1968/1969

Mentioned in
-- Collector info (Sammler)

Author
Model page created by Peter Hoddow. See "Data change" for further contributors.
