FM Automatic Tuning 2FA-24W

FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 758590) Radio
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696020) Radio FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1105488) Radio
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 689675) Radio FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 689676) Radio
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 689677) Radio FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696021) Radio
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696023) Radio FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696025) Radio
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696026) Radio FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696028) Radio
Use red slider bar for more.
FM Automatic Tuning 2FA-24W; Sony Corporation; (ID = 1696020) Radio
Sony Corporation;: FM Automatic Tuning 2FA-24W [Radio] ID = 1696020 640x1400
Select picture or schematic to display from thumbnails on the right and click for download.

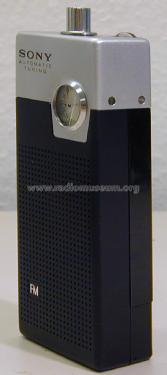

For model FM Automatic Tuning 2FA-24W, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SA455 2SA162 2SC403 2SC403 2SC403 2SC402 2SC401 2SD64 2SD64 2SC403 2SC401 1T26
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 8 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 3 x 1.35 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM Automatic Tuning 2FA-24W - Sony Corporation; Tokyo
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 45 x 120 x 25 mm / 1.8 x 4.7 x 1 inch
Notes

(Mechanic) automatic tuning, mercury type 640 cells.

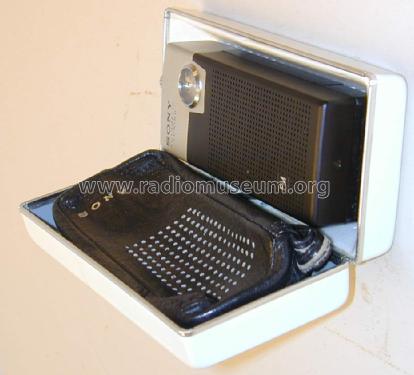

Weight incl. hard shell clam box

The Sony 2FA-24W was introduced in 1966 and was presented
in the 1967 James Bond film “You Only Live Twice.”

Net weight (2.2 lb = 1 kg) 0.370 kg / 0 lb 13 oz (0.815 lb)

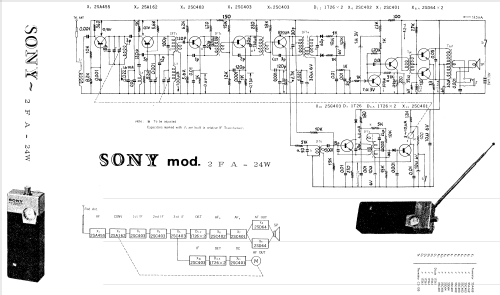

Source of data -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
