3 Band Receiver ICF-760S

3 Band Receiver ICF-760S; Sony Corporation; (ID = 2048530) Radio 3 Band Receiver ICF-760S; Sony Corporation; (ID = 2048531) Radio

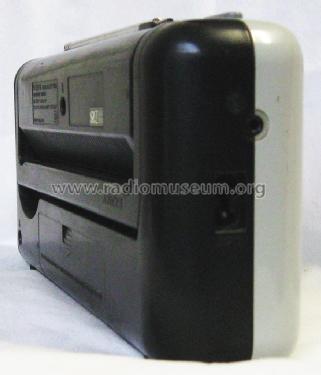

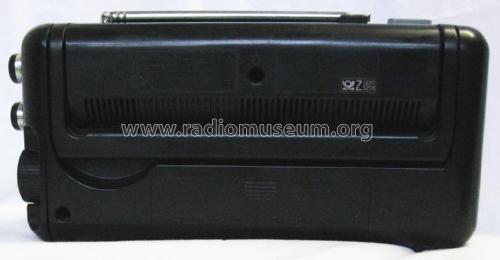

3 Band Receiver ICF-760S; Sony Corporation; (ID = 2048532) Radio 3 Band Receiver ICF-760S; Sony Corporation; (ID = 2048533) Radio
Use red slider bar for more.

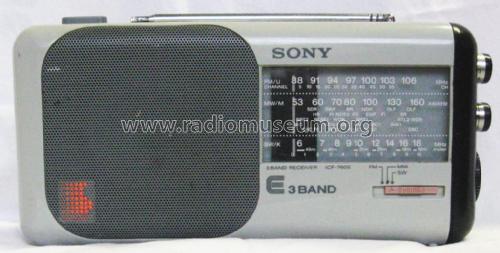

3 Band Receiver ICF-760S; Sony Corporation; (ID = 2048530) Radio
Sony Corporation;: 3 Band Receiver ICF-760S [Radio] ID = 2048530 1024x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Band Receiver ICF-760S, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1989 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 3 Band Receiver ICF-760S - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 120 x 53 mm / 9.8 x 4.7 x 2.1 inch
Notes

3 Band Reiseradio mit 62cm schwenkbarer Teleskopantenne und Ein-/Ausschalter oben; Bandwahl-Schiebeschalter vorn; Lautstärke, Tonblende und Abstimmung rechts; Netzeinspeisung und 3,5mm Ohrhöreranschluss links; ausschwenkbarer Tragegriff hinten.

Empfangsbereiche:
UKW: 87,5 - 108MHz,
KW: 5,8 - 18,5MHz,
MW: 520 - 1620kHz.

Made in Malaysia


Net weight (2.2 lb = 1 kg) 0.775 kg / 1 lb 11.3 oz (1.707 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
