For model 4 Band Receiver ICF-32 UK-Canada, Sony Corporation; Tokyo:

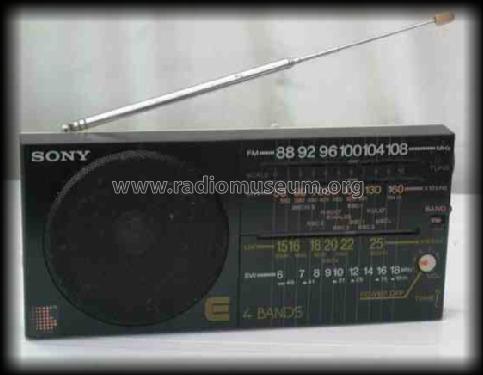

Sony ICF-32 front - Ebay July 2013 item 251309132608.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1986 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 4 x 1.5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 4 Band Receiver ICF-32 [UK-Canada] - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 110 x 30 mm / 9.1 x 4.3 x 1.2 inch
Notes

FM range 88 - 108 MHz.

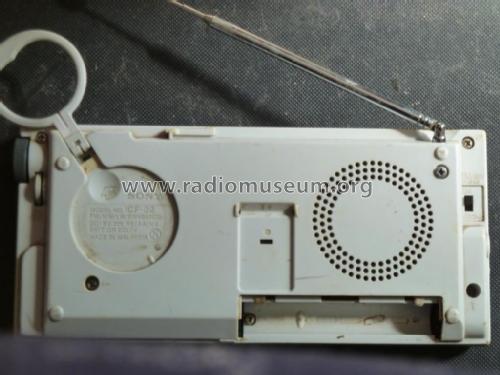

Featuring dramatic modern graphics and innovative design, the ICF-32 was one of a Sony design series. It was preceded by the three-band ICF-25 and had a very similar four band successor in the ICF-35 which outwardly only differed in the grouping of the bands on the tuning scale. Special design features include a fold-out finger loop for carrying the set, a fold-down rear support, a fine tuning control and a dx-local antenna switch. There is also a "magic-eye" led tuning indicator.

See also the specially adapted variant Sony ICF-32 [European] with FM range 88 - 106 MHz and European station names for MW.

Made in Malaysia.

Documents about this model
  Operating Instructions Sony ICF-32 FM/MW/LW/SW 4 Band Receiver 294 KB

Model page created by Clive Forder. See "Data change" for further contributors.
