• Country
• Spain

• Manufacturer / Brand
• Sony España; Hispano Sony; Kosmos Eléctrica; Las Franquesas del Vallés

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127027

• • alternative name: Hispano Sony S.A.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC629 2SC629 2SC403 2SC403 2SC403 2SC633 2SB383 2SB383

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Digimatic 8FC-69WA - Sony España; Hispano Sony;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 320 x 100 x 140 mm / 12.6 x 3.9 x 5.5 inch

• Notes

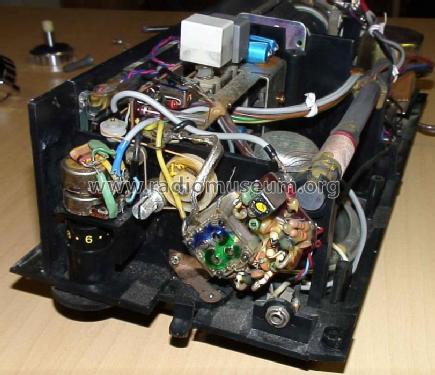

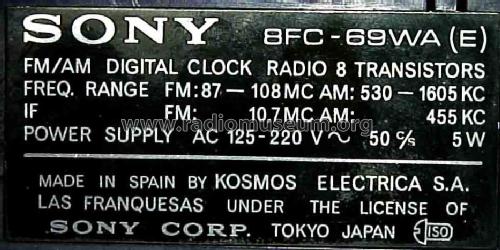

• Sony FM-AM Solid State Digimatic Clock Radio 8FC-69WA,
  AC-operated flip-down alarm clock movement (50 Hz).

  AM circuits: four L-C circuits and one ceramic resonator.

  See also the 60 Hz model Sony 8FC-69W.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jordi Cardona Serra. See "Data change" for further contributors.
