8RC-25

8RC-25; Sony Corporation; (ID = 758041) Radio

8RC-25; Sony Corporation; (ID = 758042) Radio

8RC-25; Sony Corporation; (ID = 758043) Radio

8RC-25; Sony Corporation; (ID = 758044) Radio
8RC-25; Sony Corporation; (ID = 1576962) Radio 8RC-25; Sony Corporation; (ID = 1576966) Radio
8RC-25; Sony Corporation; (ID = 1576960) Radio 8RC-25; Sony Corporation; (ID = 1576961) Radio

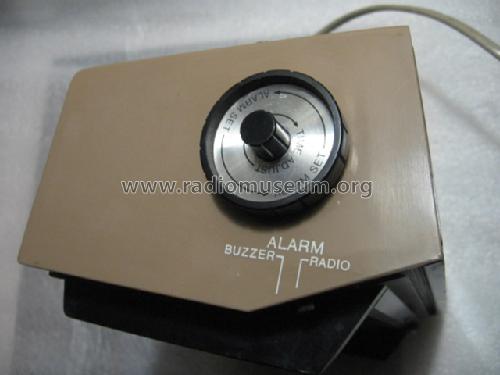

8RC-25; Sony Corporation; (ID = 1576963) Radio 8RC-25; Sony Corporation; (ID = 1576964) Radio
8RC-25; Sony Corporation; (ID = 1576967) Radio
Use red slider bar for more.

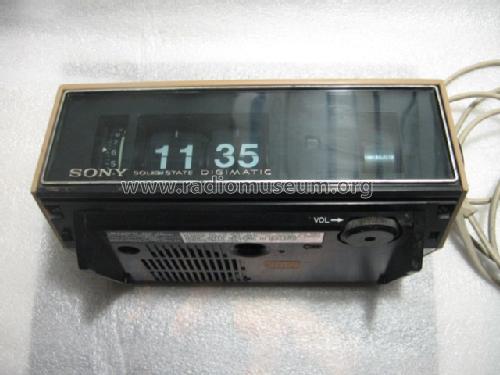

8RC-25; Sony Corporation; (ID = 1576962) Radio
Sony Corporation;: 8RC-25 [Radio] ID = 1576962 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8RC-25, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SC710 2SC710 2SC710 2SC870 2SB22 2SB22
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 8RC-25 - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 240 x 130 x 110 mm / 9.4 x 5.1 x 4.3 inch
Notes Frequency range: AM: 530 ÷ 1605 kHz.
Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
