AC Power Adaptor for Betamax AC-F1E (ACF1E)

AC Power Adaptor for Betamax AC-F1E ; Sony Corporation; (ID = 981333) Power-S AC Power Adaptor for Betamax AC-F1E ; Sony Corporation; (ID = 981332) Power-S
AC Power Adaptor for Betamax AC-F1E ; Sony Corporation; (ID = 617042) Power-S AC Power Adaptor for Betamax AC-F1E ; Sony Corporation; (ID = 981330) Power-S
Use red slider bar for more.
AC Power Adaptor for Betamax AC-F1E ; Sony Corporation; (ID = 981333) Power-S
Sony Corporation;: AC Power Adaptor for Betamax AC-F1E [Power-S] ID = 981333 850x759
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC Power Adaptor for Betamax AC-F1E (ACF1E), Sony Corporation; Tokyo:
By courtesy of guest Cyriel Provost, Schelle, Belgium.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1981 Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AC Power Adaptor for Betamax AC-F1E - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 80 x 105 mm / 12.2 x 3.1 x 4.1 inch

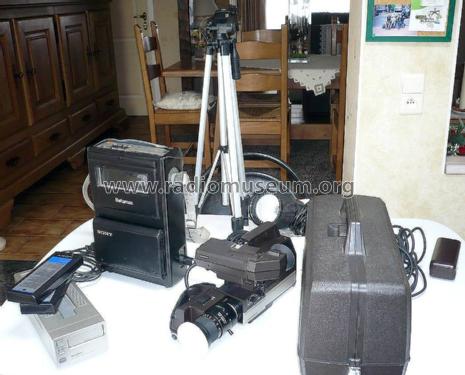

Notes The Sony AC-F1E AC Power Adaptor is for the recorder but also for Sony Battery Pack NP-1 (NP-1A) as a standard accu for Sony units like TV sets and mobile VTR's. See for instance the Betamax Portable Video Cassette Recorder SL-F1E (SL-F1UB). ;
14 VDC out with DIN connector, 17 VDC charger for Sony "Battery Pack NP-1", fitted to Sony SL-F1E ß-Betamax VTR for use instead of the "Sony Tuner Timer UNIT TT-F1E" as power supply.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
