AM/FM Table Radio ICF-9740W

AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208957) Radio AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208958) Radio
AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208959) Radio AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208960) Radio
AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208962) Radio AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208963) Radio
Use red slider bar for more.

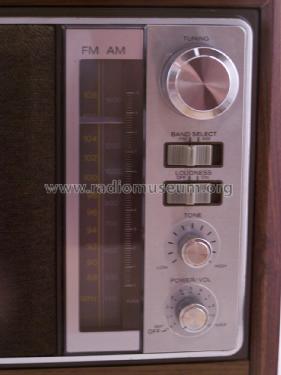

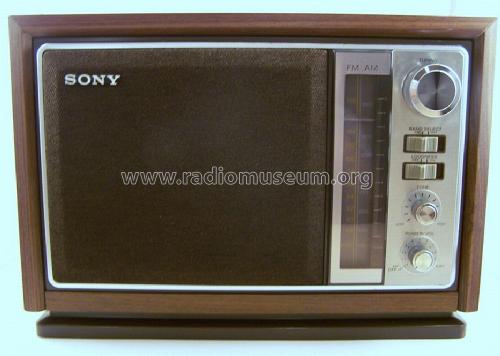

AM/FM Table Radio ICF-9740W; Sony Corporation; (ID = 1208957) Radio
Sony Corporation;: AM/FM Table Radio ICF-9740W [Radio] ID = 1208957 933x665
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Table Radio ICF-9740W, Sony Corporation; Tokyo:
Ebay User onesweetbillie Item 251032523457

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AM/FM Table Radio ICF-9740W - Sony Corporation; Tokyo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 232 x 136 mm / 13 x 9.1 x 5.4 inch
Notes Sony AM/FM Table Radio ICF-9740W;
AM: Built-in ferrite bar antenna,
FM: Power cord antenna. Connection for ext. FM antenna provided.
Canadian models has a recording output.
Made in Taiwan.
In 2002, the model may be produced again, and then advertised as a retro radio.
"'Retro' design styling offers a nostalgic return to the earlier days of radio when listening to broadcasts of weekday "soaps" and celebrated news commentators were regular family highlights."
Net weight (2.2 lb = 1 kg) 4 lb 13 oz (4.813 lb) / 2.185 kg
Source of data - - Data from my own collection

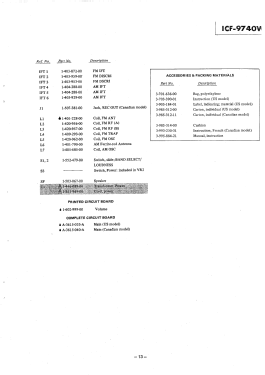

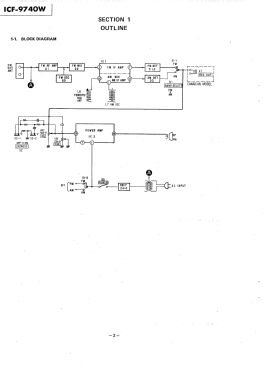

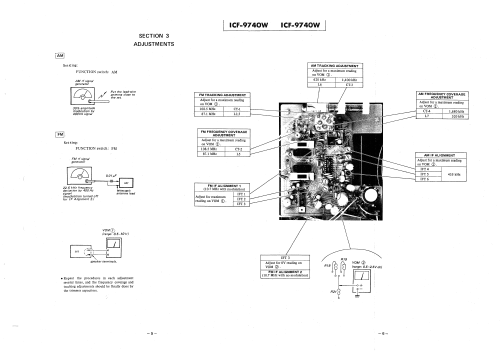

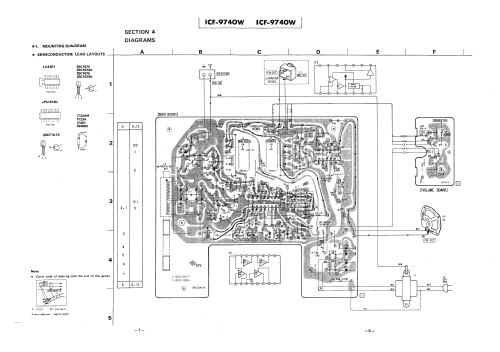

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Aaron Schepler. See "Data change" for further contributors.



All listed radios etc. from Sony Corporation; Tokyo
Here you find 3516 models, 3254 with images and 742 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Sony Corporation;: AM/FM Table Radio ICF-9740W
Threads: 1 | Posts: 1
Hits: 4419     Replies: 0
sony: ICF-9740W; Operating instructions
Bernhard Nagel
30.Aug.10
  1

Attached you will find a short instruction manual for the US and Canadian model Sony ICF-9740W.
