• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1971 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 248664

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SB54 2SB56 2SB56 2SB56 2SB56 2SB263 2SB263 2SB439

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

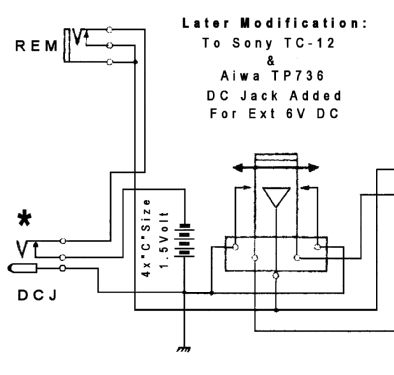

• Power type and voltage
• Batteries / addl. power jack / C: 4 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassette-Corder TC-12 - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 124 x 63 x 210 mm / 4.9 x 2.5 x 8.3 inch

• Notes

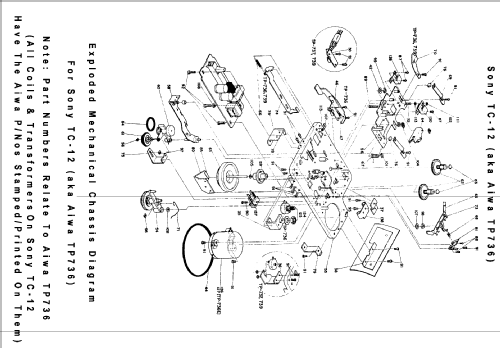

• Sony Cassette-Corder TC-12 was equipped with an Aiwa cassette mechanism
  which can be found in model TP-736.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Mentioned in
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Anthony Alston. See "Data change" for further contributors.
