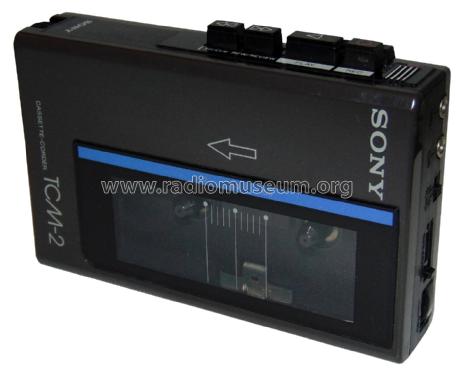

Cassette-Corder TCM-2 MT-2-06

Sony Corporation; Tokyo

  • Year
  • 1985
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 206921

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Dry Batteries / 2 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette-Corder TCM-2 MT-2-06 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 85 x 132 x 32 mm / 3.3 x 5.2 x 1.3 inch
  • Notes
  • Recorder and player, Tape mechanism type MT-2-06.
    internal microphone and speaker, jacks for ext. microphone and earphone, counter tone low/high switch.
  • Source of data
  • - - Data from my own collection
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hans Zimmermann. See "Data change" for further contributors.
