Cassette-Corder TCM-400DV

Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930687) R-Player Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930688) R-Player

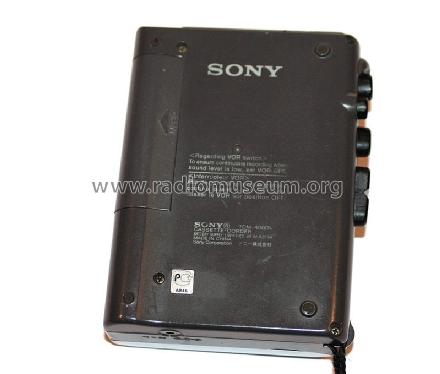

Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930689) R-Player Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930690) R-Player
Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930691) R-Player
Use red slider bar for more.
Cassette-Corder TCM-400DV; Sony Corporation; (ID = 1930687) R-Player
Sony Corporation;: Cassette-Corder TCM-400DV [R-Player] ID = 1930687 800x481
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette-Corder TCM-400DV, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2001–2009 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / AA: 2 x 1,5 / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
Power out 0.25 W (undistorted)
from Radiomuseum.org Model: Cassette-Corder TCM-400DV - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 89 x 114 x 35 inch / 2261 x 2896 x 889 mm
Notes

Cassette-Corder TCM-400DV.
Dictaphone 2-track 1 channel mono.
Frequency range: 250-6300 Hz.
Power output 250 mW (at 10% harmonic distortion).
Input: Internal microphone and  microphone input jack, sensitivity 0,2 mV.
Output: Internal loudspeaker and earphone jack for 8-300 ohms.
Variable range of the tape speed.

Automatic Shut-off. Clear Voice Sound System.

One-Touch Record. Automatic Recording Level.

Tape Speed: 2 Speed (4,8 cm/s / 2,4 cm/s variable).

3 Digit Tape Counter

Made in China

Net weight (2.2 lb = 1 kg) 0.160 kg / 0 lb 5.6 oz (0.352 lb)
Mentioned in -- Original prospect or advert

Model page created by Danko Tkalec. See "Data change" for further contributors.
