CD Compact Player D-160

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315822

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Direct Current supply (DC) / 9 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org

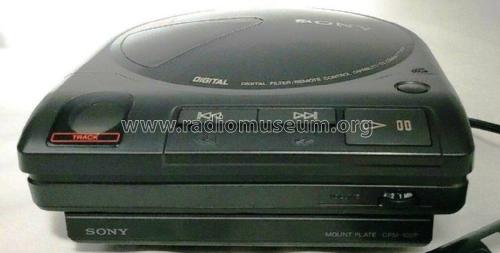

  • Model: CD Compact Player D-160 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 150 x 48.6 x 175 mm / 5.9 x 1.9 x 6.9 inch
  • Notes

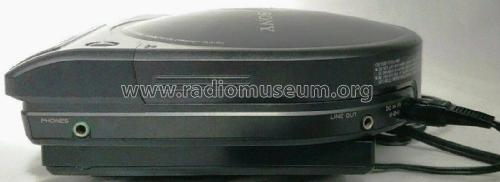

  • A small portable stereo compact disc player powered either by a 9 volt mains adaptor, or by a car battery via a CPM-100P or CPM-100A car mounting kit or by an optional DCC-120 car battery cord, both of which plug into the car cigar lighter. Connection to the car radio cassette amplifier is via an CPA-1 or CPA-2 Car Connecting Pack which plugs in as a cassette. Optional Sony RM-DM1K Remote Control Kit. Jacks for DC In 9V, Line Out, Phones and Remote. Track number display.

    Frequency Response: 20 - 20,000 Hz +1dB,-3dB
    Line Out: 1V at 47kΩ, Load Impedance over 10kΩ
    Phones: 10mW + 10mW at 32Ω, Load Impedance 32Ω

    9V mains adaptor : US Model 120V AC 60Hz
    Power Consumption: 2.7W DC

    Very similar to the Sony D-600 and D-600A CD Compact Players.

  • Net weight (2.2 lb = 1 kg)
  • 0.570 kg / 1 lb 4.1 oz (1.256 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual D160/D600/D600A)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
