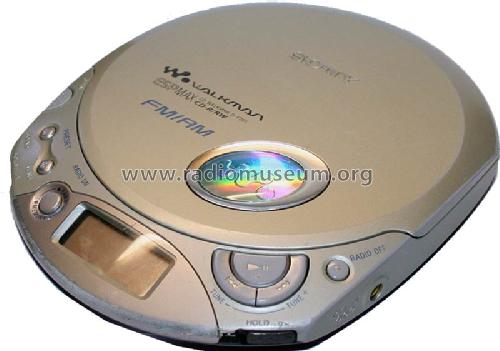

CD Walkman FM/ AM D-F201

Sony Corporation; Tokyo

  • Year
  • 2002
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238958

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Batteries / addl. power jack / 3 / 4,5 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Walkman FM/ AM D-F201 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 161 x 26 x 130 mm / 6.3 x 1 x 5.1 inch
  • Notes
  • ESPMAX. CD-R, CD-RW Playback Compatibility. Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Headphones Cord Antenna. Frequency Range: AM: 531-1710kHz; FM: 87.5-108MHz. Station Preset(s): 30 (10 AM, 20 FM). Frequency Response: 20-20000Hz, 1/32dB. Output Power 5 + 5 mW. DC-in: 4,5V. 1-bit quartz time-axis control.

  • Net weight (2.2 lb = 1 kg)
  • 0.210 kg / 0 lb 7.4 oz (0.463 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
