Compact Disc Player CDP-S37

Compact Disc Player CDP-S37; Sony Corporation; (ID = 769536) R-Player Compact Disc Player CDP-S37; Sony Corporation; (ID = 769537) R-Player
Compact Disc Player CDP-S37; Sony Corporation; (ID = 1305699) R-Player Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719972) R-Player

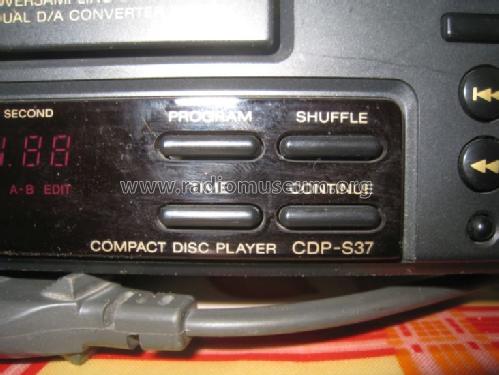

Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719973) R-Player Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719974) R-Player
Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719976) R-Player Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719977) R-Player

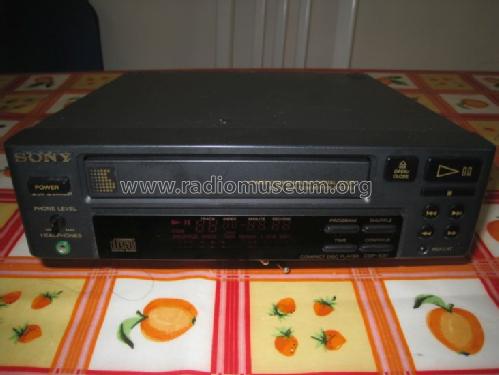

Compact Disc Player CDP-S37; Sony Corporation; (ID = 1719978) R-Player
Use red slider bar for more.
Compact Disc Player CDP-S37; Sony Corporation; (ID = 769536) R-Player
Sony Corporation;: Compact Disc Player CDP-S37 [R-Player] ID = 769536 615x461
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CDP-S37, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1989 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120; 220; 240; 110-120; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CDP-S37 - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 225 x 65 x 230 mm / 8.9 x 2.6 x 9.1 inch
Notes

A mini sized stereo hi-fi compact disc player. Dual D/A Converter System, 4 Times Oversampling Digital Filter. RCA phono Line Out sockets, System Control input connector. Jack for headphones with volume control.

Specification
Frequency response5 Hz - 20 kHz (+0.5dB,-2.0dB)
Signal to noise ratioMore than 95 dB
Dynamic rangeMore than 90 dB
Harmonic distortionLess than 0.05% (at 1 kHz)
Channel separation More than 90 dB
Outputs
Line Out (Fixed)
(phono jacks) 		Output level 2 V (at 50 kΩ)
Load impedance over 10 kΩ
Headphones
(stereo phone jack)		Output level max. 11 mW
Load impedance 32 Ω

Versions/Power requirements
AEP model: /  220V AC 50/60Hz
UK model: /  240V AC 50/60Hz
Canadian model: /  120V AC 60Hz
E model: /  110-120 or 220-240V AC 50/60Hz adjustable

Power consumption  10 W

Similar to the Sony CDP-S207 Compact Disc Player which has no headphones socket.
Net weight (2.2 lb = 1 kg) 1.880 kg / 4 lb 2.3 oz (4.141 lb)
Mentioned in - - Data from my own collection
Literature/Schematics (1) - - Manufacturers Literature (Service Manual CDP-S37/S207 dated 1989.3)

Model page created by Adriano Scarpa. See "Data change" for further contributors.
