For model CF-550A All, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1972–1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 34:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-240 / 4 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: CF-550A [All] - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)

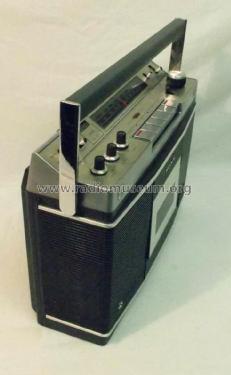

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 334 x 244 x 119 mm / 13.1 x 9.6 x 4.7 inch

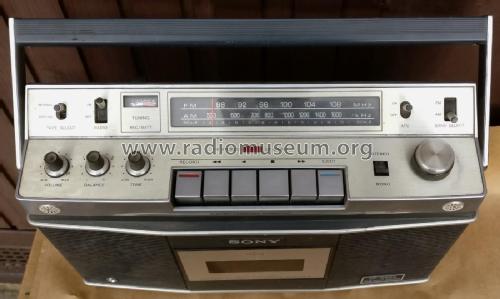

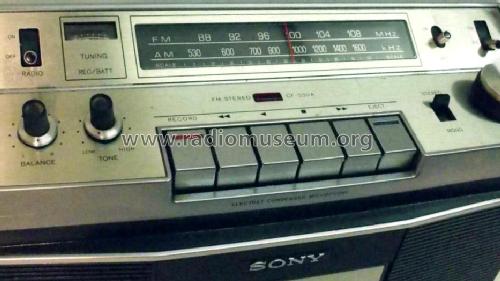

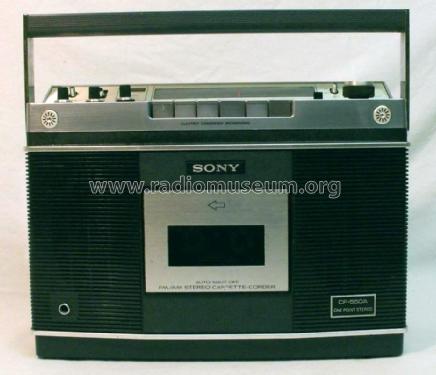

Notes Sony CF-550A, FM Stereo/FM-AM Radio Cassette-Corder, One Point Stereo;

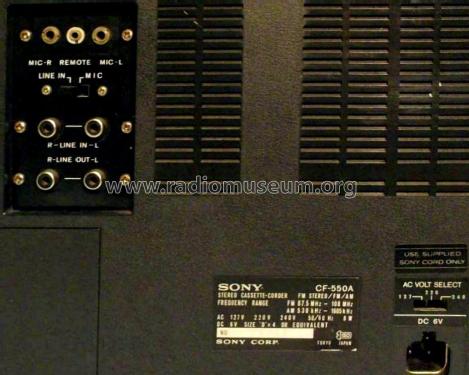

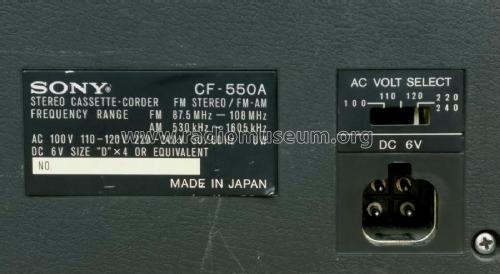

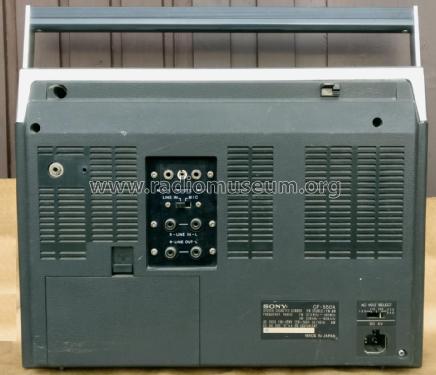

2 electret condenser mics., tuning/batt indicator, 2 x 1.5 (3) W, standard & special tape bias, RCA in-/out terminals, 2 x mic & rem. jack, headhones jack. Versions for E, Canada, GEP, USA, & UK known with slightly different power supplies, UK model up to serial# 29684: 127, 220 & 240 V, serial# 29685 and later: 240 V only, 13 W power consumption.
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Mentioned in -- Original prospect or advert ((D) Sony Programm für anspruchsvolles Hören 1976)
