CFD-131
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1996
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293069

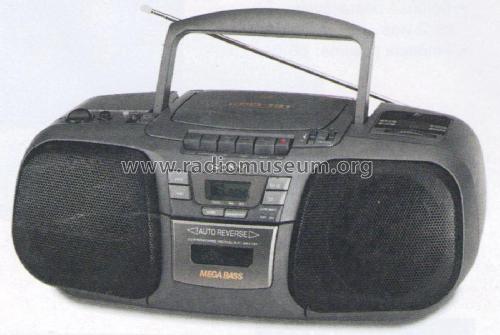

Foto Catalogo Sony
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4.6 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CFD-131 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 446 x 165 x 234 mm / 17.6 x 6.5 x 9.2 inch
- Notes
-
Radio Cassette Recorder and CD Player, digital tuner MW/FM stereo, deck cassette with auto reverse in player mode, mega bass system,1 bit D/A converter, programmable CD reading (rms 20 tracks, CD repeat (1/all/shuffle/program, playback time display, tone control, synchronized recording from CD to cassette, auto stop (player and record, headphones out.
- Net weight (2.2 lb = 1 kg)
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Mentioned in
- SONY Catalogs (Catalogo Sony 1996 Model Page 181)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
