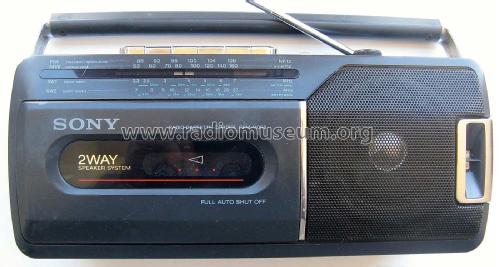

CFM-140SII (2)

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306234

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110-120; 220-240 / C: 4 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CFM-140SII - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 319 x 133 x 92 mm / 12.6 x 5.2 x 3.6 inch
  • Notes

  • Frequency ranges:
    MW = 530 - 1605 kHz
    SW1 = 2.3 - 7 MHz
    SW2 = 7.0 - 22 MHz
    FM = 87.6 - 108 MHz

    2 speakers: 7.7 cm full range, 2 cm tweeter
    Tape transport mechanism: MF-140-II

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
