Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A

Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348479) Television Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348482) Television
Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348485) Television Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348486) Television

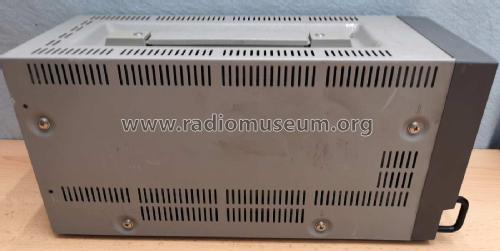

Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348487) Television Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348488) Television

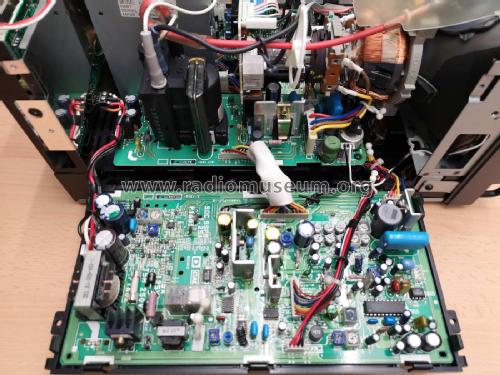

Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348489) Television Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348491) Television
Use red slider bar for more.
Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A; Sony Corporation; (ID = 2348479) Television
Sony Corporation;: Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A [Television] ID = 2348479 1400x1526
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1988 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A13JHH00X
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 110-240 VAC / 12 VDC / Spezial Akku 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Color Video Monitor PVM-6041 QM Ch= SCC-F09D-A - Sony Corporation; Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 146 x 173 x 253 mm / 5.7 x 6.8 x 10 inch
Notes

Color system: PAL, SECAM, NTSCa, sa, NTSC 4.43

Power consumption 40 W at AC operation 40 W at DC operation
VIDEO IN: BNC connector, R/R-Y, G/Y, B/B-Y: BNC connector, all 75 Ohm
12 VDC, with the Sony (NP-1A/1B) battery pack or AC-500/500CE Sony AC power adaptor

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Mentioned in - - Manufacturers Literature

Model page created by Axel Paap. See "Data change" for further contributors.
