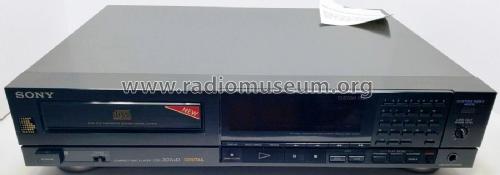

Compact Disc Player CDP-307ESD

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1988 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315958

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-307ESD - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 105 x 340 mm / 16.9 x 4.1 x 13.4 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RM-D650). Shuffle play, up to 99 track random Replay Program,  Repeat replay, Memo function, Program Bank function, Custom Index function. Jack for headphones.

    Specification
    System Compact disc digital audio system
    Frequency response 2 - 20,000 Hz ±0.3dB
    Signal to noise ratio More than 104 dB
    Dynamic range More than 95 dB
    Harmonic distortion Less than 0.003% (1 kHz)
    Channel separation More than 95 dB (1 kHz)
    Output
    Line Out (Fixed)
    (phono jacks)    		 Output level 2V (at 50 kΩ)
    Load impedance over 10 kΩ
    Line Out (Variable)
    (phono jacks)    		 Output level max. 2 V (at 50 kΩ)
    Load impedance over 50 kΩ
    Digital Out (Coaxial)
    (phono jacks)          		 Output level 0.5V p-p (at 75 Ω)
    Load impedance 75 Ω
    Headphones
    (stereo phone jack)    		 Output level max. 15 mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model:  /  120V AC, 60 Hz
    E model: /  110, 120, 220, 240 V AC, 50/60Hz

    Power consumption 13 W

    Similar to the Sony CDP-950 Compact Disc Player.

  • Net weight (2.2 lb = 1 kg)
  • 5.6 kg / 12 lb 5.4 oz (12.335 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-307ESD/950 dated 1988.1)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
