Compact Disc Player CDP-C89ES

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 317364

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-C89ES - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 470 x 125 x 385 mm / 18.5 x 4.9 x 15.2 inch
  • Notes

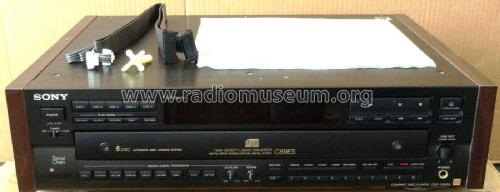

  • A stereo hi-fi 5 disc carousel changer compact disc player housed in a metal case with wooden side panels, with remote control (RM-D870). High Density Linear Converter, Digital Servo System, 5 Disc Automatic Disc Loading System, Digital Signal Processor (DSP), Serial Chain. RCA phono sockets for Fixed and Variable Line Out, Optical output connector for Digital output, Control S system Input and Output connectors, Serial Chain Control connector and Mode selector switch and a jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Laser (KSS-240A) Semiconductor laser (λ = 780 nm)
    Emission Duration: Continuous
    Frequency response 2 Hz - 20 kHz (±0.3 dB)
    Signal to noise ratio More than 115 dB
    Dynamic range More than 100 dB
    Harmonic distortion Less than 0.0020% (1 kHz)
    Channel separation More than 110 dB (1 kHz)
    Outputs
    LINE OUT (FIXED)
    (phono jacks)    		 Output level 2V (at 50 kΩ, non DSP-mode)
    Load impedance over 10 kΩ
    LINE OUT (VARIABLE)
    (phono jacks)    		 Output level max. 2V (at 50 kΩ, non DSP-mode)
    Load impedance over 10 kΩ
    DIGITAL OUT (OPTICAL)
    (optical output connector)    		 Wave length 660 nm
    Output level -18 dBm
    PHONES
    (Stereo phone jack)    		 Output level 15mW
    Load impedance 32 Ω

    Versions/Power requirements
    US model /  120V AC 60Hz

    Power consumption:   18 W

  • Net weight (2.2 lb = 1 kg)
  • 8.7 kg / 19 lb 2.6 oz (19.163 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual CDP-C79ES/C89ES dated 1992.5)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions CDP-C79ES CDP-C89ES)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
