DAB/FM Digital Radio XDR-S40DBP
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 2013
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341742

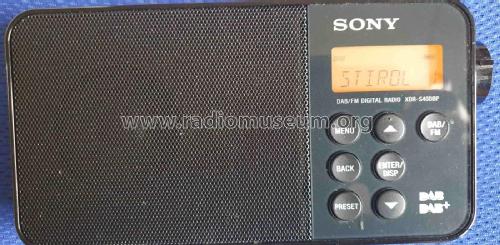

DAB reception
FM reception

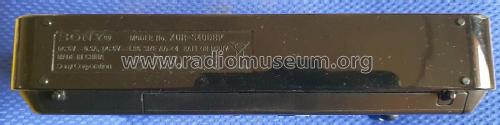

Device identification data
Volume knob

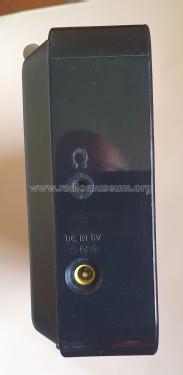

DC in 6V
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- DSP, Digital Signal Processor
- Wave bands
- DAB and FM, perhaps with Streaming [DABFM]
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: DAB/FM Digital Radio XDR-S40DBP - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 95 x 36 mm / 7.1 x 3.7 x 1.4 inch
- Notes
-
Main specifications:
- Frequency range: DAB/DAB+ (Band III) 174.928 MHz - 239.200 MHz; FM 87.5 MHz - 108 MHz.
- Intermediate frequency: DAB (Band III) 2.048 MHz; FM 1.943 MHz.
- On/off key, volume knob.
- Autotune, sleep, preset, time, beep, reset. Stereo in headphones, 3.5 mm. jack.
External power source: DC in 6 V.
Made in China.
- Net weight (2.2 lb = 1 kg)
- 0.355 kg / 0 lb 12.5 oz (0.782 lb)
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
