DAB/FM Digital-Radio XDR-S56DBP

DAB/FM Digital-Radio XDR-S56DBP; Sony Corporation; (ID = 1566675) Radio
DAB/FM Digital-Radio XDR-S56DBP; Sony Corporation; (ID = 1566231) Radio DAB/FM Digital-Radio XDR-S56DBP; Sony Corporation; (ID = 1566232) Radio
DAB/FM Digital-Radio XDR-S56DBP; Sony Corporation; (ID = 1566233) Radio
Use red slider bar for more.
DAB/FM Digital-Radio XDR-S56DBP; Sony Corporation; (ID = 1566231) Radio

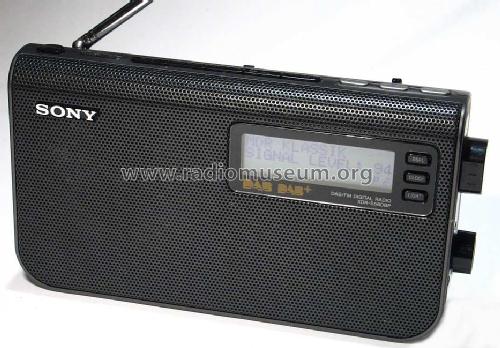

Sony Corporation;: DAB/FM Digital-Radio XDR-S56DBP [Radio] ID = 1566231 933x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model DAB/FM Digital-Radio XDR-S56DBP, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2011 Category: Broadcast Receiver - or past WW2 Tuner
schematic requested
Main principle DSP, Digital Signal Processor
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / DC 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 0.3 W (undistorted)
from Radiomuseum.org Model: DAB/FM Digital-Radio XDR-S56DBP - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 189 x 103 x 38 mm / 7.4 x 4.1 x 1.5 inch
Notes

DAB+ Band III 174,928 ... 239,200 MHz
UKW   87,5 ... 108 MHz  (0,05 MHz Step)

Senderspeicher 10 DAB+, 10 UKW, davon 3  Sender durch Direkt-Senderspeichertasten, Sendersuchlauf automatisch oder manuell. Einschlaf-Timer, Uhrenanzeige, Buchse (3,5 mm - Klinke) für Stereo-Kopfhörer.
Durchschnittliche Betriebsdauer mit einem Batteriesatz (4x AA Alkaline) ca. 13 Std.

Netzteil DC 6V mitgeliefert.

Net weight (2.2 lb = 1 kg) 0.486 kg / 1 lb 1.1 oz (1.07 lb)
Price in first year of sale 70.00 €
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
