DAT Walkman TCD-D3
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1991
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 127289
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage and/or dry batteries / 4,8 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org

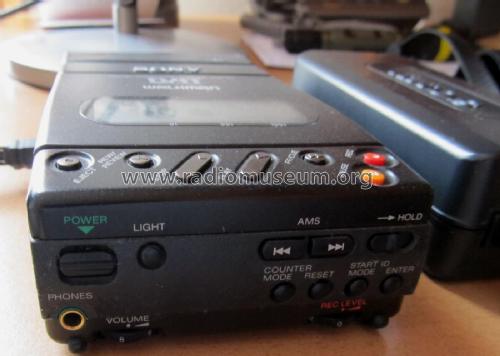

- Model: DAT Walkman TCD-D3 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 120 x 80.5 x 40 mm / 4.7 x 3.2 x 1.6 inch
- Notes
- Enregistreur numérique à cassette DAT - convertisseur A/N 1-bit pulse (enregistrement) - N/A 18-bits à échantillonage octuple (reproduction) - livré avec adaptateur chargeur ACP-D3 et batterie BP-D3, housse de transport et cables de connexion line IN/OUT - fréquence d'échantillonage 32/44, 1/48 -kHz - réponse à 44 kHz : 20-20000 Hz - rapport signal/bruit : >90
Digital tape DAT recorder, comes with BP-D3 rechargeable battery and battery charger adaptor ACP-D3.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
