Digital Audio Tape Recorder PCM-7030

Sony Corporation; Tokyo

  • Year
  • 1992 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 264523

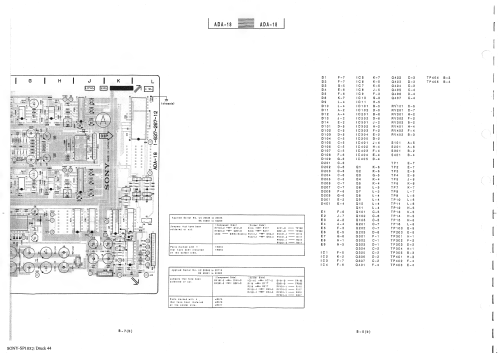

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • DSP, Digital Signal Processor
  • Wave bands
  • - without
  • Details
  • Special Tape or Cassette-Format; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Digital Audio Tape Recorder PCM-7030 - Sony Corporation; Tokyo
  • Shape
  • Rack
  • Notes
  • SONY Digital Audio Tape Recorder PCM-7030

    • Digital Audio Tape format.
    • Channels: High quality 2-channel digital recording with SMPTE time code.
    • Recording System: Rotary-head DAT recording.
    • Tape Speed: 8.15 mm/s.
    • Scanner Rotation Speed: 2000 rpm (standard recording/playback).
    • Track Pitch: 13.6 µm.
    • Head System: Helical scanning rotary 4-head system.
    • Quantization: 16-bit linear.
    • Modulation: 8 to 10 modulation.
    • Sampling Frequency: 48 kHz, 44.1 kHz selectable.
    • Frequency Response: 20 Hz to 20 kHz ±0.5 dB.
    • Recording Time: 124 minutes (with Sony PDP-124).
    • Variable Speed Range: (12.5% (playback).
    • FF and REW Time: Max. 60s (with Sony PDP-124).
    • Shuttle Speed: x 1/5, x 1/2 , x 1, x 3, x 8, or x 16 normal speed.
    • Jog Speed: x 0 to x 1, x 3 normal speed.
    • Error Correction: Double-encoded RSC (Reed-Solomon Code).
    • S/N Ratio: > 90 dB.
    • T.H.D.: < 0.5% at reference level.
    • Power Requirements: AC 230V +6/-10% 50/60Hz.
    • Power Consumption: 38 W.
    • Remote Control: 9-pin serial remote connector. RS-232C for PC connection.

    Special Functions:

    • Monitoring : Modes: RAW (Read-After-Write) and RMW (Read-Modify-Write). In RAW mode, real-time off tape monitoring is provided. In the RMW mode, the PCM-7030 allows enhanced punch in and punch out operation with crossfading at the punch in and out points.
    • Variable Speed Playback: ±12.5%.
    • Variable Speed Recording: " pull up" and " pull down" ±1% recording sample rates permits automatic  ±0.01% speed change during playback, useful  for post-production.
    • Memory Start Function: Three seconds of audio data from around the play starting point is stored in a stereo digital sound memory and this memorized sound is output instantly when the play key is pressed. This eliminates the delay, which is inherent in a rotary head system. The start point can be trimmed and the designated start point can be rehearsed any number of times. When operating the time code locate or start ID locate function in memory start mode, the PCM-7030 automatically stores that audio data around the locate point for instant playback.



  • Price in first year of sale
  • 8,000.00 USD
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Moisés Piedade. See "Data change" for further contributors.
