AM/FM Stereo Tuner 800ES ST-S800ES

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745311) Radio

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745312) Radio

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745313) Radio

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745314) Radio

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745315) Radio

AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 745316) Radio
AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 2577218) Radio AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 2577219) Radio
AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 2577220) Radio AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 2577221) Radio
Use red slider bar for more.
AM/FM Stereo Tuner 800ES ST-S800ES; Sony Corporation; (ID = 2577218) Radio
Sony Corporation;: AM/FM Stereo Tuner 800ES ST-S800ES [Radio] ID = 2577218 1400x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner 800ES ST-S800ES, Sony Corporation; Tokyo:
For sale on kupujemprodajem.com item_102437822 seller Milan Knezevic

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1988 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop; ZF/IF 450/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner 800ES ST-S800ES - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 85 x 345 mm / 16.9 x 3.3 x 13.6 inch
Notes

A hi-fi AM/FM stereo PLL quartz digital synthesizer tuner with a digital frequency display, housed in a black metal case. With an SST (Super Sound Tracing) circuit, signal strength/multipath meter, auto and manual tuning, tuning up and tuning down buttons, memory for AM and FM radio stations with 12 preset station keys, switch for program function for use with an optional timer, buttons for Wide/Narrow IF bands, 400Hz 50% modulated calibration tone signal, Scan/Read, Mute/Mode and an FM Antenna selector switch. With terminals for FM and AM antennae, a clip-on AM loop antenna and RCA phono line output sockets.

Specifications
SystemPLL quartz-locked digital synthesizer system
FM stereo, FM/AM super-heterodyne tuner
FM Section
Tuning range87.5MHz - 108MHz
Antenna terminalsTwo 75Ω (A and B), unbalanced
Sensitivity at 50dB quieting16.8dBf, 1.8µV (mono)
37.9dBf, 22.5µV (stereo)
Usable sensitivity10.3dBf, 0.9µV (IHF)
Signal/Noise ratio
  at 75kHz deviation
  at 40kHz deviation
97dB (mono), 92dB (stereo)
91dB (mono), 86dB (stereo)
Harmonic distortion at 1kHz
(at 75kHz deviation)
WIDE: 0.005% (mono), 0.008% (stereo)
NARROW: 0.04% (mono), 0.06% (stereo)
IM distortionWIDE: 0.005% (mono), 0.008% (stereo)
NARROW: 0.04% (mono), 0.06% (stereo)
Separation at 1kHz70dB (WIDE) 50dB (NARROW)
Frequency response40Hz - 12.5kHz ±0.2dB
15Hz - 15kHz +0.2dB,-0.5dB
Selectivity65dB (NARROW) at 300kHz
65dB (WIDE) at 400kHz
Capture ratio1.0dB (WIDE)
AM suppression ratio65dB
Image response ratio120dB
IF response ratio>120dB
Spurious response ratio>120dB
Muting threshold29dBf, 8µV
Auto tuning threshold29dBf
Output level/impedance
at 75kHz deviation
750mV, 1kΩ
AM Section
Tuning range531 - 1602kHz
AntennaAM loop antenna
External antenna terminal
Usable sensitivity
  AM loop antenna
  External antenna
300µVm (at 999kHz)
30µV (at 999kHz)
Signal/Noise ratio54dB (50mV/m)
Harmonic distortion0.3% (at 50mV/m, 400Hz)
Selectivity55dB (9kHz)

 Versions/Power requirements
AEP, G-AEP models  / 220V AC 50/60Hz internally switchable to 240V AC

Power consumption: 27 Watts

Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Price in first year of sale 580.00 DM
Source of data -- Original prospect or advert
Mentioned in -- Original prospect or advert (1988 Sony Hi-Fi catalogue)

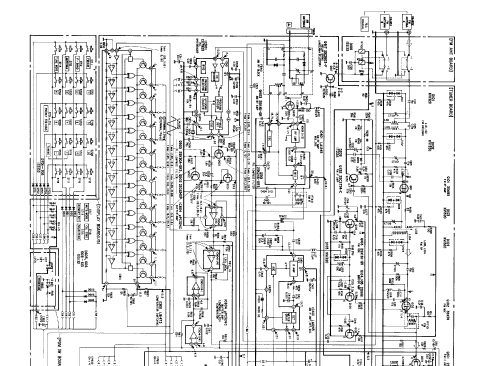

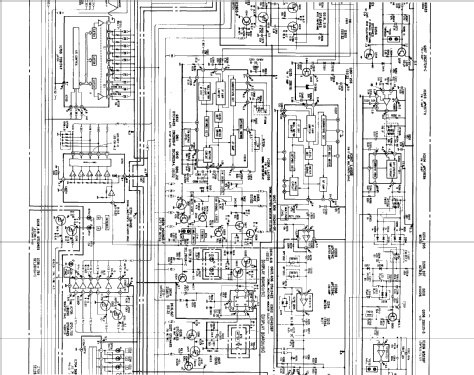

Literature/Schematics (1) - - Manufacturers Literature (Service manual ST-S800ES)
