• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2008 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337185

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio); Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 230 & for back-up: CR2032 1 x 3 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 3.8 cm = 1.5 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Dream Machine FM/AM CD Clock Radio ICF-CD3iP - Sony Corporation; Tokyo

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 145 x 157 x 116 mm / 5.7 x 6.2 x 4.6 inch

• Notes

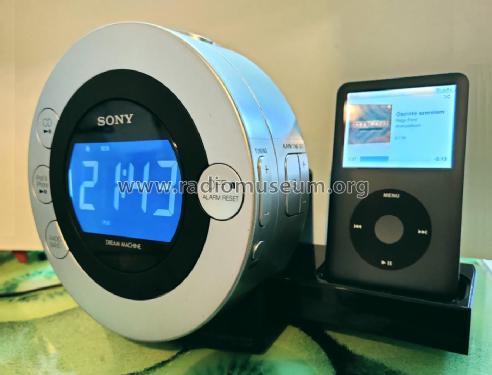

• Sony Dream Machine CD Clock Radio ICF-CD3iP, with Apple iPhone and iPod dock in drawer.

  Some compatible models are: Apple iPhone, iPhone 3G and 3GS, and several iPods like iPod touch, iPod classic, iPod nano and iPod mini.

  Made in China

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Mentioned in

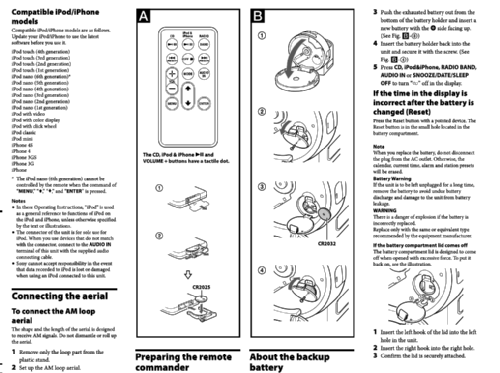

• - - Manufacturers Literature

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
