Dream Machine FM/AM Clock Radio ICF-C717PJ

ID = 315014

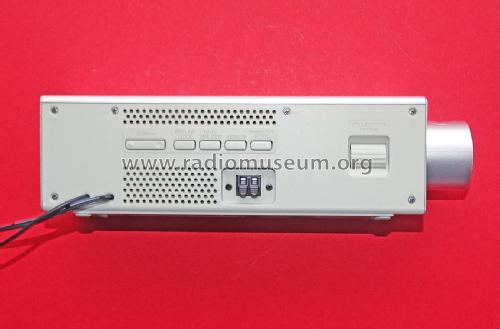

{gbW: "1400", gbH: "602", mW: "500", mH: "215.0", kb: "71 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Wolfgang Steeger (1)", ite: "1"} {gbW: "1400", gbH: "749", mW: "500", mH: "267.0", kb: "70 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo:[br]Gerät mit eingeschalteter Projektion", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Wolfgang Steeger (1)", ite: "1"} {gbW: "1400", gbH: "586", mW: "500", mH: "209.0", kb: "80 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo:[br]Dream Machine FM/AM Clock Radio ICF-C717PJ Rückseite", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Wolfgang Steeger (1)", ite: "1"} {gbW: "1400", gbH: "542", mW: "500", mH: "193.0", kb: "63 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo:[br]Dream Machine FM/AM Clock Radio ICF-C717PJ Oberseite", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Wolfgang Steeger (1)", ite: "1"} {gbW: "1400", gbH: "730", mW: "500", mH: "260.0", kb: "95 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo:[br]Links: Die drehbare Projektionseinheit.", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Bernhard Nagel (1)", ite: "1"} {gbW: "1400", gbH: "1071", mW: "490.0", mH: "375", kb: "82 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo:[br]Projektion der Uhrzeit auf einem Vorhang. Das blaue Display kann ausgeschaltet werden und nur die projizierte Uhrzeit leuchtet.", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Bernhard Nagel (1)", ite: "1"} {gbW: "1400", gbH: "633", mW: "500", mH: "226.0", kb: "83 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Bernhard Nagel (1)", ite: "1"} {gbW: "1215", gbH: "447", mW: "500", mH: "183.0", kb: "74 KB", notes: "For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo", title: "Sony Corporation; Dream Machine FM/AM Clock Radio ICF-C717PJ from Bernhard Nagel (1)", ite: "1"}

Dream Machine FM/AM Clock Radio ICF-C717PJ; Sony Corporation; (ID = 2446049) Radio

Use red slider bar for more.

Dream Machine FM/AM Clock Radio ICF-C717PJ; Sony Corporation; (ID = 2445913) Radio

Sony Corporation;: Dream Machine FM/AM Clock Radio ICF-C717PJ [Radio] ID = 2445913 1400x602

Select picture or schematic to display from thumbnails on the right and click for download.

For model Dream Machine FM/AM Clock Radio ICF-C717PJ, Sony Corporation; Tokyo

Country:

Japan

Manufacturer / Brand:

Sony Corporation; Tokyo

Year: 2010

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle	PLL, Phase-locked loop
Wave bands	Broadcast (BC) and FM or UHF.
Details	Radio with other functions
Power type and voltage	Alternating Current supply (AC) / 230 V & For clock: CR2032: 1 x 3 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
Power out	0.7 W (max.)
from Radiomuseum.org	Model: Dream Machine FM/AM Clock Radio ICF-C717PJ - Sony Corporation; Tokyo
Material	Plastics (no bakelite or catalin)
Shape	Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD)	215 x 67 x 63 mm / 8.5 x 2.6 x 2.5 inch
Notes	FM/AM-Synthesizer Radiowecker mit zwei Weckeinstellungen, je 5 Senderspeicher AM/FM, verschiedene Wecksignale (Naturklänge/Radio oder Weckton). Wurfantenne für FM, Anschluss für Rahmenantenne für AM. Display mit Temperaturanzeige, einstellbare Helligkeit hell/dunkel oder aus, Notstromversorgung für Uhrzeit durch 3V/CR 2032 Lithium-Batterie. Integriertes Audiokabel zum Anschluß externer Geräte mit Stereo-Ministecker 3,5mm. Projektorfunktion für Uhrzeit. Abgesetztes Steckernetzteil, fest angeschlossen.
Net weight (2.2 lb = 1 kg)	0.670 kg / 1 lb 7.6 oz (1.476 lb)

Model page created by Wolfgang Steeger. See "Data change" for further contributors.
