• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2006 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 297939

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

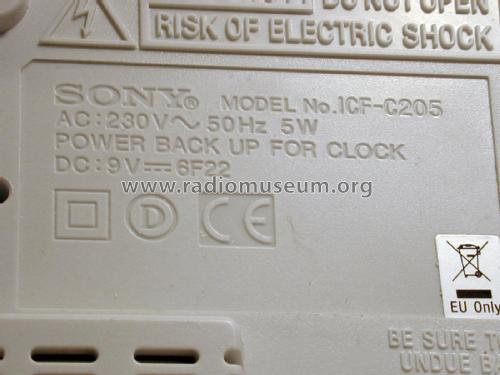

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

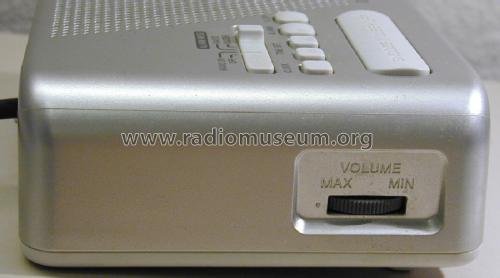

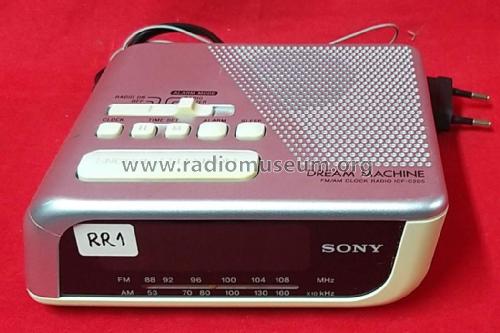

• Model: Dream Machine ICF-C205 - Sony Corporation; Tokyo

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 143 x 54.5 x 117.5 mm / 5.6 x 2.1 x 4.6 inch

• Notes

• Sony Dream Machine ICF-C205 AM/FM, with 9 V back-up battery.

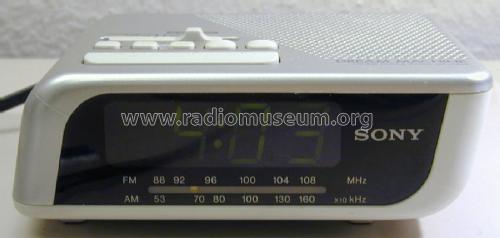

  0.7 inch green LED display.

• Net weight (2.2 lb = 1 kg)
• 0.396 kg / 0 lb 14 oz (0.872 lb)

• Price in first year of sale
• 14.99 EUR

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
