Dream machine ICF-C710
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1991 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321072
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 & DC 9 (back up) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

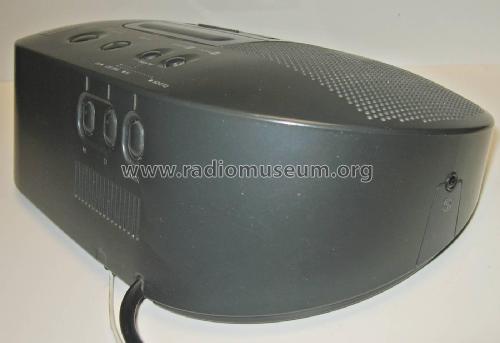

- Model: Dream machine ICF-C710 - Sony Corporation; Tokyo
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 250 x 75 x 160 mm / 9.8 x 3 x 6.3 inch
- Notes
-
Weck- Uhrenradio; AM-Empfang über eingebaute Ferritantenne, FM-Empfang über Wurfantenne.
9 V-Blockbatterie für Uhrzeit- / Weckzeitspeicher bei Netzausfall.
Leistungsaufnahme: 5 W.Made in Taiwan R.O.C.
Siehe auch Modell ICF-C710L mit Langwelle + UKW.
Halbleiterliste nicht vollständig.
- Net weight (2.2 lb = 1 kg)
- 0.770 kg / 1 lb 11.1 oz (1.696 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
