Dream Machine XDR-C705DAB

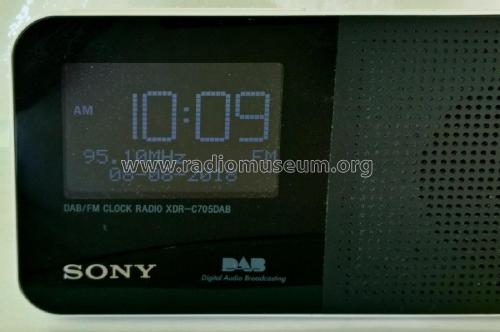

Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283032) Radio Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283033) Radio
Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283034) Radio Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283035) Radio
Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283036) Radio Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283037) Radio
Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283038) Radio Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283039) Radio
Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283040) Radio Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283041) Radio
Use red slider bar for more.
Dream Machine XDR-C705DAB; Sony Corporation; (ID = 2283032) Radio
Sony Corporation;: Dream Machine XDR-C705DAB [Radio] ID = 2283032 1399x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dream Machine XDR-C705DAB, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2007 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle FLL, Frequency-locked loop (not PLL)
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details
Power type and voltage Alternating Current supply (AC) / 50 Hz; 230 Volt

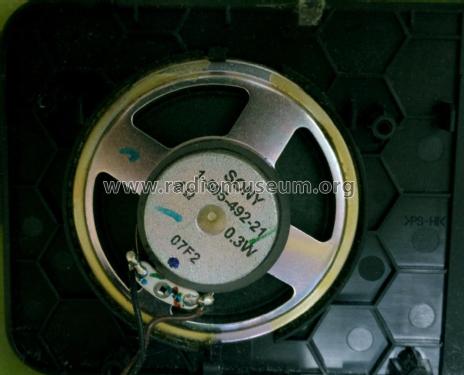

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.7 cm = 2.6 inch
Power out 0.4 W (max.)
from Radiomuseum.org Model: Dream Machine XDR-C705DAB - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 192.5 x 92.6 x 87.7 mm / 7.6 x 3.6 x 3.5 inch
Net weight (2.2 lb = 1 kg) 0.455 kg / 1 lb 0 oz (1.002 lb)

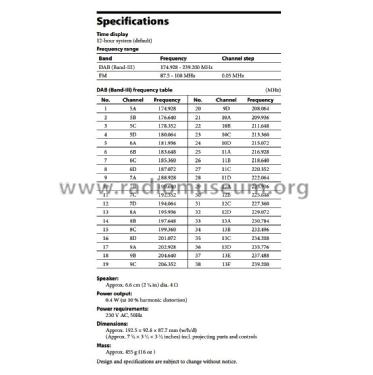

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
