For model EL-5 220V, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1976–1979 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EL-5 [220V] - Sony Corporation; Tokyo
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 170 x 320 mm / 16.9 x 6.7 x 12.6 inch
Notes Elcaset HiFi stereo deck, one motor, 2 heads, 9,5 cm/sec tape speed, up to 22.000 Hz, 2 VU-meters, Dolby & MPX filter, remote control with type RM-30.

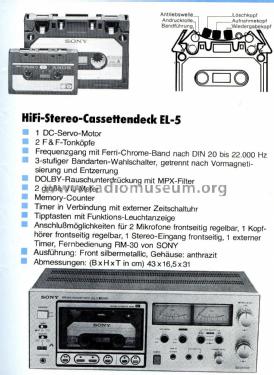

Mentioned in Sony IFA Katalog 1979
Literature/Schematics (1) Funkschau (23/1976, S. 992 / HiFi 76 in Düsseldorf)
