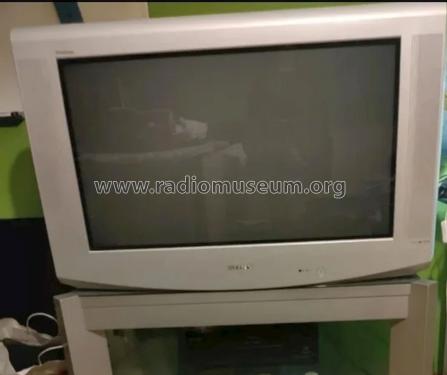

Trinitron KV-32LS60E (Ch= AE-6B)

Sony España; Hispano Sony; Kosmos Eléctrica; Las Franquesas del Vallés

Data
Forum
Pictures
Collections

  • Year
  • 2002 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 359717
    • alternative name: Hispano Sony S.A.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 35 W (70 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Trinitron KV-32LS60E - Sony España; Hispano Sony;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 892 x 565 x 584 mm / 35.1 x 22.2 x 23 inch
  • Notes

  • Sony España, S.A.,Trinitron Color Television KV-32LS60E

    TV Color 32" con mando a distancia RM-932

    Subwoofer de 30 W musicales (15 W RMS)

  • Net weight (2.2 lb = 1 kg)
  • 62.2 kg / 137 lb 0.1 oz (137.004 lb)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
