FM-AM Solid State Clock Radio 8FC-35

Sony Corporation of America; New York, NY

  • Year
  • 1966/1967 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 325031

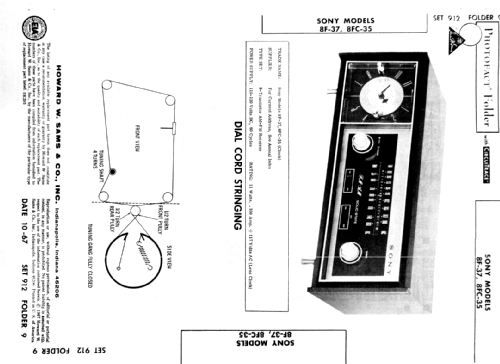

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: FM-AM Solid State Clock Radio 8FC-35 - Sony Corporation of America;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 370 x 155 x 200 mm / 14.6 x 6.1 x 7.9 inch
  • Author
  • Model page created by Carl Liebold. See "Data change" for further contributors.
