FM Stereo / AM-FM Tuner ST-JX661

FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891478) Radio FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891480) Radio
FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891481) Radio FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891482) Radio
FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891483) Radio FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891485) Radio
FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891486) Radio FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891487) Radio
FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891488) Radio FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891490) Radio
Use red slider bar for more.
FM Stereo / AM-FM Tuner ST-JX661; Sony Corporation; (ID = 1891478) Radio
Sony Corporation;: FM Stereo / AM-FM Tuner ST-JX661 [Radio] ID = 1891478 1400x330
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo / AM-FM Tuner ST-JX661, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1996 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop; ZF/IF 450/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo / AM-FM Tuner ST-JX661 - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 82 x 295 mm / 16.9 x 3.2 x 11.6 inch
Notes

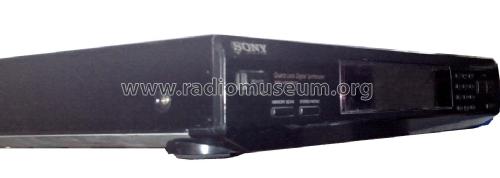

A hi-fi quartz lock digital synthesizer tuner with a digital frequency display housed in a metal case. With memory for 20 FM and 10 AM preset radio stations, push buttons for Tuning up and down, Memory scan, Stereo/Mono, and Band (AM/FM). On the back, a 75 ohm FM antenna coaxial connector, terminals for AM antenna, RCA phono sockets for Line Output.

Specification
FM tuner section
Frequency range 87.5-108MHz
Aerial terminals 75Ω, unbalanced
Sensitivity at 50dB quieting
 mono
 stereo
22.1dBf, 7µV/75Ω
42.1dBf, 70µV/75Ω
Usable sensitivity (IHF) 19.5dBf, 5µV/75Ω
S/N at 75kHz dev. 80dB (mono), 75dB (stereo)
Harmonic distortion at 1kHz 0.3% (mono), 0.5% (stereo)
Frequency response 30Hz-15kHz +0.5dB,-2.0dB
Separation 35dB at 1kHz
Selectivity 55dB at 400kHz
Output at 75kHz dev. 775mV, 4.7kΩ
AM tuner section
Frequency range 522-1,611kHz
Usable Sensitivity 500µV/m (with AM loop aerial)
S/N ratio 54dB (50mV/m, 999kHz)
Harmonic distortion 0.5% (50mV/m, 400Hz)

Power requirements: 220-230V AC 50/60 Hz
Power consumption: 7 Watts

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Service manual ST-JX661 ST-SE200 dated 1996)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
