FM Stereo / FM-AM Tuner ST-5950SD

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457841) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457842) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457843) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457844) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457845) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457846) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457847) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457848) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457849) Radio

FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2457850) Radio
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2393386) Radio FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2393388) Radio
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2393389) Radio FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 1615474) Radio
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 1615475) Radio FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 846415) Radio
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 846416) Radio FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2454709) Radio
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2454710) Radio FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2454711) Radio
Use red slider bar for more.
FM Stereo / FM-AM Tuner ST-5950SD; Sony Corporation; (ID = 2393386) Radio
Sony Corporation;: FM Stereo / FM-AM Tuner ST-5950SD [Radio] ID = 2393386 1397x779
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo / FM-AM Tuner ST-5950SD, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo / FM-AM Tuner ST-5950SD - Sony Corporation; Tokyo
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 460 x 168 x 331 mm / 18.1 x 6.6 x 13 inch
Notes

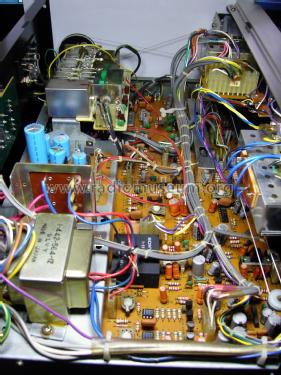

A hi-fi AM/FM stereo tuner with an analogue dial, housed in a metal case, wooden end panels optional. With Dolby NR for FM broadcasts. With meters for Signal strength and Tuning, Stereo and Dolby FM indicator lamps, rotary Tuning control, a rotary Function switch (Dolby FM, FM, AM) and rotary Mode switch (Stereo Only, Stereo Auto, Mono), push button switches for Muting, Multipath test, Hi Blend and AFC and a jack for headphones with rotary volume control. On the back, an adjustable AM ferrite rod antenna, terminals for AM and FM antennae, RCA phono sockets for Fixed Line Output and for Variable Line Output (with output level adjusters) and for FM Discriminator output.

Specification
FM Section
Tuning Range87.5 - 108MHz
Antenna Terminals 300Ω balanced, 75Ω coaxial cable input
Usable Sensitivity1.5µV (MONO), IHF
1.4µV, S/N=26dB (40kHz deviation)
Sensitivity at 50dB Quieting2.8µV (MONO), 35µV (STEREO)
Image Rejection90dB
IF Rejection100dB
Spurious Rejection100dB
AM Suppression56dB
Capture Ratio1.0dB
Selectivity85dB
S/N Ratio76dB (MONO), 70dB (STEREO)
Harmonic Distortion at 100Hz, 1kHz0.1% (MONO), 0.2% (STEREO)
Stereo Separation40dB at 100Hz
Frequency Response20Hz - 15kHz +0.2dB,-1.0dB
Muting LevelApprox. 5µV
AM Section
Tuning Range530 - 1,605kHz
Antenna Built-in ferrite-bar antenna and
external antenna terminal
Usable Sensitivity250µV/m built-in antenna
100µV external antenna
at 1,000kHz
Image Rejection45dB at 1,000kHz
S/N Ratio50dB at 50mV/m
Harmonic Distortion0.5% at 50mV/m, 400Hz
OutputsFIXED:               750mV, 10kΩ
VARIABLE:        0-2V, 3kΩ
FM DISCRI:       140mV, 10kΩ
HEADPHONES: 0-200mV (8Ω headphones)

Versions/Power Requirements
UK, AEP /  110, 127, 220 or 240V AC 50/60Hz with voltage selector

Power Consumption:  32W

Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)
Source of data - - Manufacturers Literature

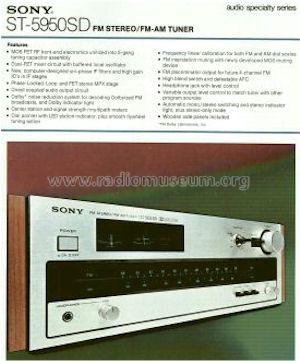

Mentioned in -- Original prospect or advert (1978 Sony Hi-Fi Programm katalog)

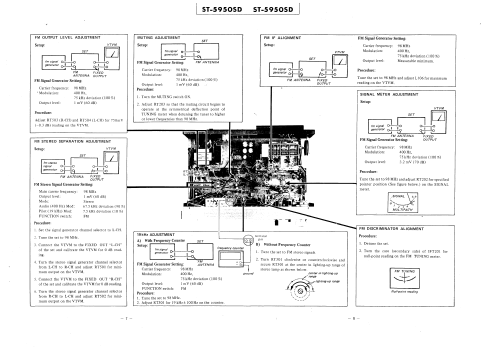

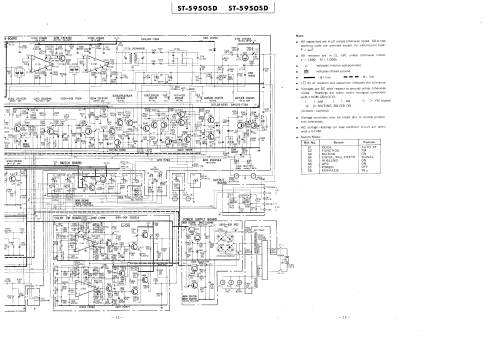

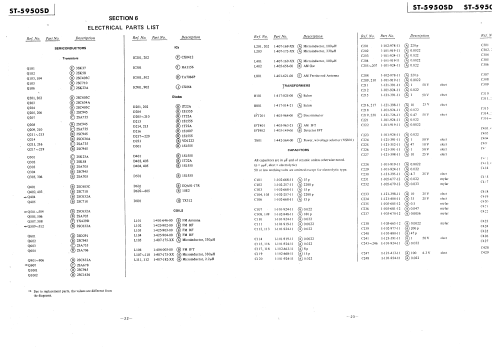

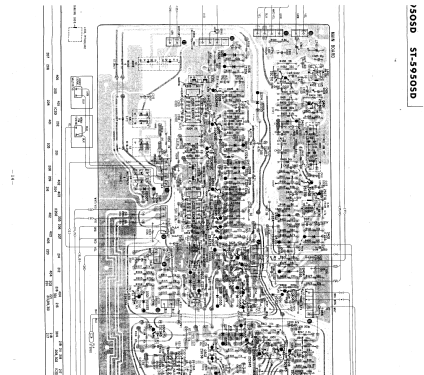

Literature/Schematics (1) - - Manufacturers Literature (Service Manual ST-5950SD dated 1976)
