FM/ SW/ MW Solid State TFM-110WB
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232242
Close up of dial.

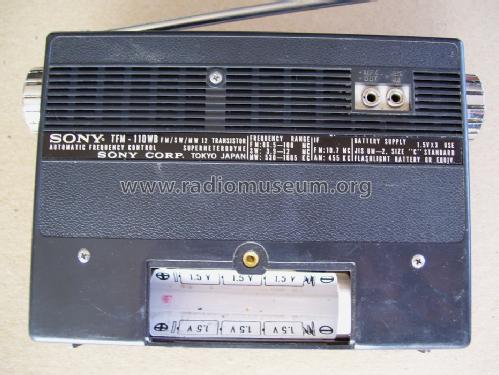

Back view with battery cover missing.
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 3x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/ SW/ MW Solid State TFM-110WB - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 8 x 5.75 x 2 inch / 203 x 146 x 51 mm
- Notes
-
FM band 86.5-108 MHz,
SW 3.5-12 MHz,
broadcast 530-1600 kHz.
- Author
- Model page created by Myron White. See "Data change" for further contributors.
