• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241985

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

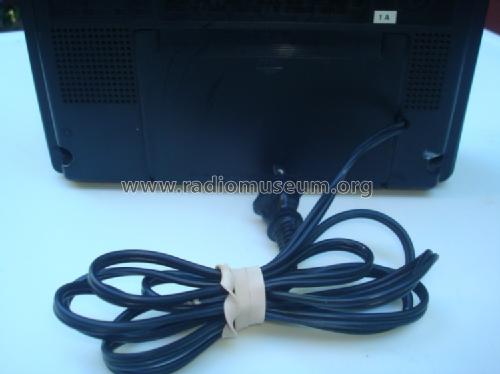

• Line / Batteries (any type) / 120 / D: 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

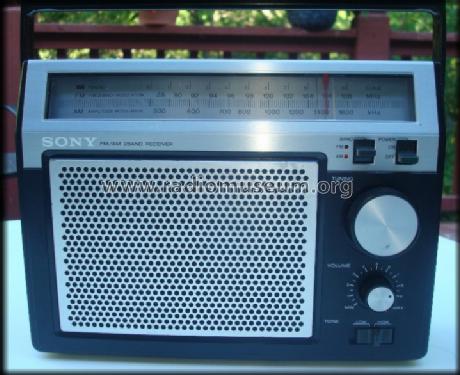

• Model: FM/AM 2 Band Receiver TFM-7720W. US/Canada Model - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 212 x 83 mm / 9.4 x 8.3 x 3.3 inch

• Notes

• Wavebands: FM 87.5 - 108 MHz. AM 530 - 1605 kHz.

  Made in Hong Kong.



• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Author
• Model page created by Clive Forder. See "Data change" for further contributors.
