FM/AM Cassette-Corder CFM-140

FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 2329414) Radio FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 2329415) Radio
FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 2329416) Radio FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 1838960) Radio
FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 1838961) Radio FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 1838962) Radio
Use red slider bar for more.

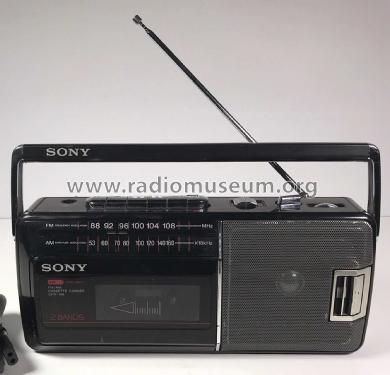

FM/AM Cassette-Corder CFM-140; Sony Corporation; (ID = 2329414) Radio
Sony Corporation;: FM/AM Cassette-Corder CFM-140 [Radio] ID = 2329414 1400x1344
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Cassette-Corder CFM-140, Sony Corporation; Tokyo:
ebay.com #392164729145 seller bobthebuilder_baseball

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1987 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 120 / C: 4 x 1.5 Volt
Loudspeaker 2 Loudspeakers
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: FM/AM Cassette-Corder CFM-140 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 308 x 134 x 90 mm / 12.1 x 5.3 x 3.5 inch
Notes

Frequency ranges:
MW = 530 - 1605 kHz
FM = 87.6 - 108 MHz

2 speakers: 7.6 cm full range, 2 cm tweeter
Tape transport mechanism: MF-110

Power requirements valid for US and Canada model.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Mentioned in -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
