FM/AM Digital Clock Radio 8FC-100W

FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216870) Radio FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216865) Radio
FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216866) Radio FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216867) Radio
FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216868) Radio FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216869) Radio
FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 2405600) Radio FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 2405601) Radio
FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 2405602) Radio FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 2405603) Radio
Use red slider bar for more.
FM/AM Digital Clock Radio 8FC-100W; Sony Corporation; (ID = 1216870) Radio
Sony Corporation;: FM/AM Digital Clock Radio 8FC-100W [Radio] ID = 1216870 933x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Digital Clock Radio 8FC-100W, Sony Corporation; Tokyo:
Ebay Seller crazyhornettoys22 Item 150793735798

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner

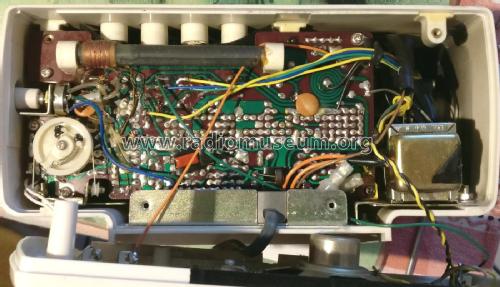

Semiconductors (the count is only for transistors) 10: 2SC403 2SC403 2SC403 2SC403 2SC710 2SC710 2SC634A 2SC634A 2SB187 2SB187
Main principle Superheterodyne (common); ZF/IF 455; 10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt

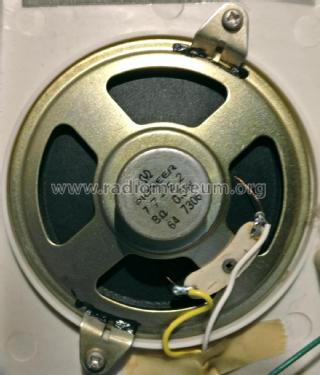

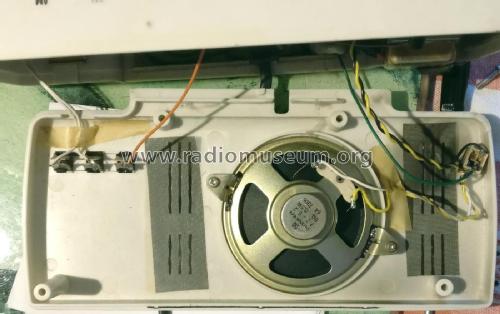

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: FM/AM Digital Clock Radio 8FC-100W - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)

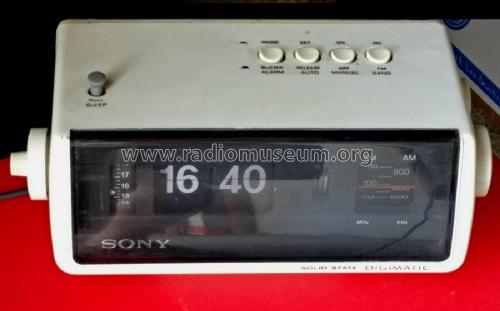

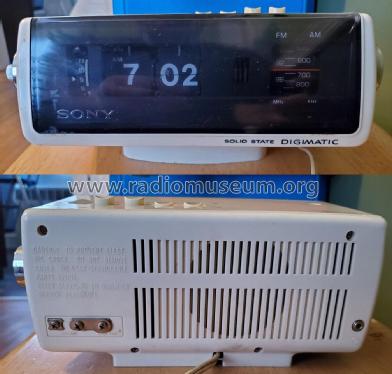

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 10.25 x 4.75 x 5.25 inch / 260 x 121 x 133 mm
Notes Sony FM/AM Digital Clock Radio Model 8FC-100W.

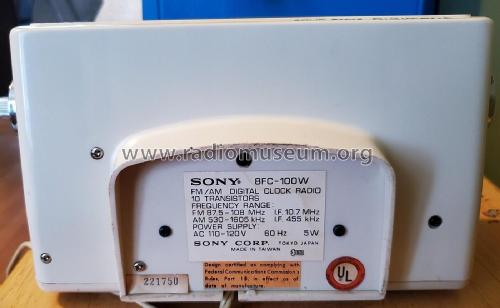

Tuning Range FM 87,5-108 MHz, AM 530-1605 kHz.
Power consumption 5 watts.
Made in Taiwan.
Source of data - - Manufacturers Literature

Model page created by Franz Scharner. See "Data change" for further contributors.
