FM/AM Walkman Radio Cassette Player WM-FX425

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1996

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273449

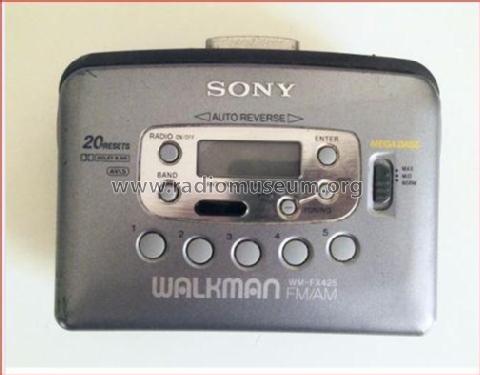

• Picture

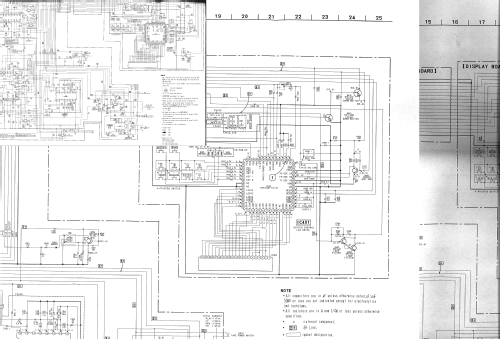

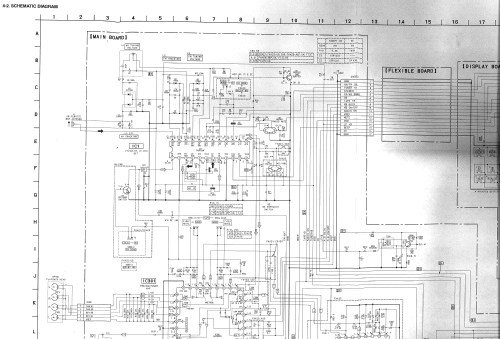

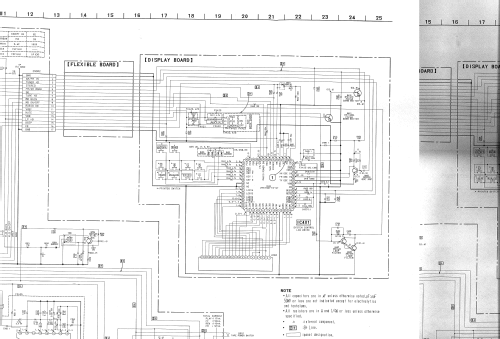

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / AA: 2 × 1,5 / 3 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/AM Walkman Radio Cassette Player WM-FX425 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 116 x 86 x 34 mm / 4.6 x 3.4 x 1.3 inch

• Notes

• - FM/AM Walkman Radio Cassette Player WM-FX425

  - 20 Presets, - System AVLS, - Dolby NR.

• Net weight (2.2 lb = 1 kg)
• 0.210 kg / 0 lb 7.4 oz (0.463 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
