For model FM/AM Walkman WM-FX103 CCIR, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1994 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player

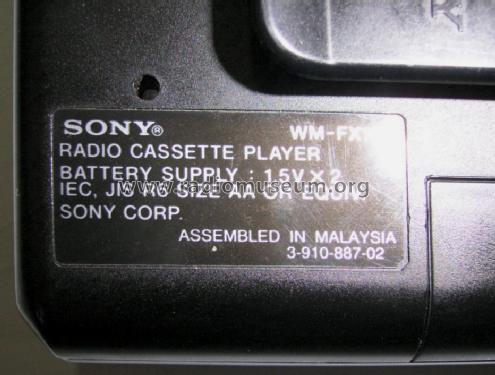

Power type and voltage Batteries / addl. power jack / 2 × 1,5 / 3 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM/AM Walkman WM-FX103 CCIR - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 115 x 90 x 30 mm / 4.5 x 3.5 x 1.2 inch
Notes Mega bass, AVLS, CrO2-Metal, Ext.Power Jack DC 3 V. FM: CCIR.
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
